45 And 55 Degree Container Accessories Manual Dovetail Bottom Twistlock

★Heat treatment steel;
★Hot dip galvanzied;
★ISO certificate;
★12 Months warranty
★More than 10 years of experience
  • Bottom Twistlock

  • Thinkwell

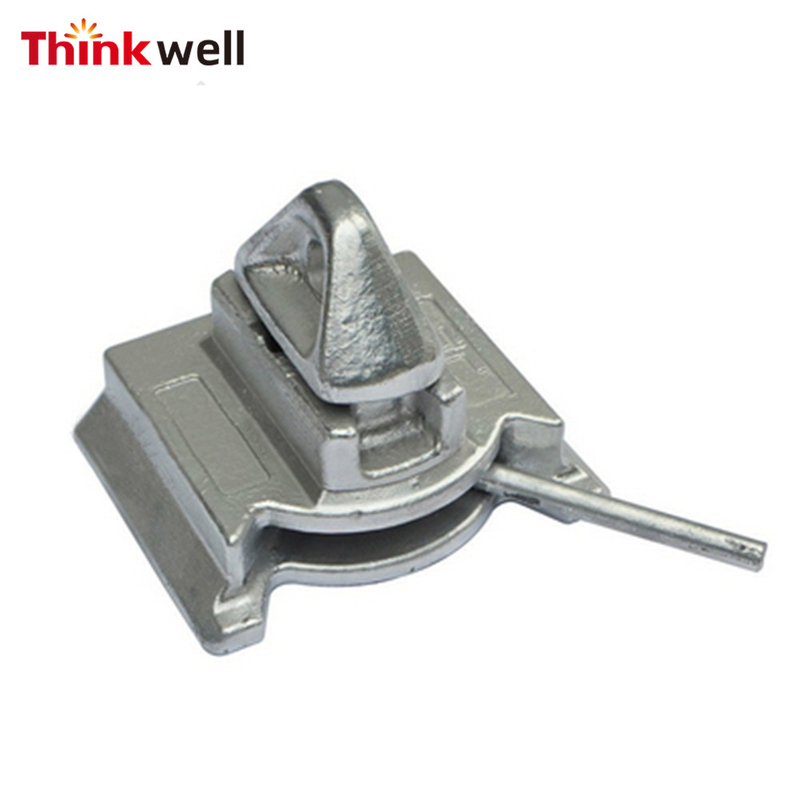

 45 And 55 Degree Container Accessories Manual Dovetail Bottom Twistlock

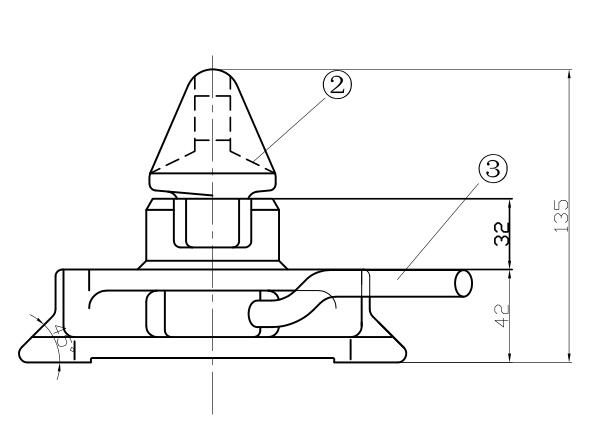

bottom twistlock drawing

Item: Bottom twistlock;

Unit weight:6.75kg

Working load:250KN tension/210KG shear

Breakload test results:500KN/420KN;

Surface: Hot Dip Galvanized;

Product Introduction

55 degree left hand lock dovetail twistlock & 55 degree dovetail base. Used for securing bottom base on standard ISO containers. Dovetails can come in either 45 or 55 degree bases as well as left & right hand lock. On the baseplate, tell marks indicate locking pin centers which are 4" from container ends & 3-1/2" from container sides at ISO corner blocks

Manual twistlock is made by high tensile steel with hot dip galvanized surface.It is used on deck for the fix and connection of containers.

Product Application

Twistlock helps customers scale securely and deploy containers with confidence. The Twistlock Platform goes beyond just containers to secure the entire cloud native stack, from the host OS to serverless functions.

Quality Control:

● Every requirement from our clients is treated carefully and feedback presented quickly by our experienced staff.

● Every order's quality is highly controlled by our skilled QC/QA team.

● Tensile test is necessary for each batch

● Any other testing requirements, feel free to let us know

THINKWELL Advantages:

●Provide OEM/ODM service, Thinkwell can according to your idea or a sketch to provide free design

●Low MOQ, more than 10pcs is accepted

●Fact delivery, usually the delivery time of the container order within 30 days

●7/24 response, any question pls let me know in time

●12 months warranty, free return for any quality problems
