Thinkwell
Powder Painted
Box + Carton + Pallet
Customized Color
Off-road Recovery
| Quantity: | |
|---|---|

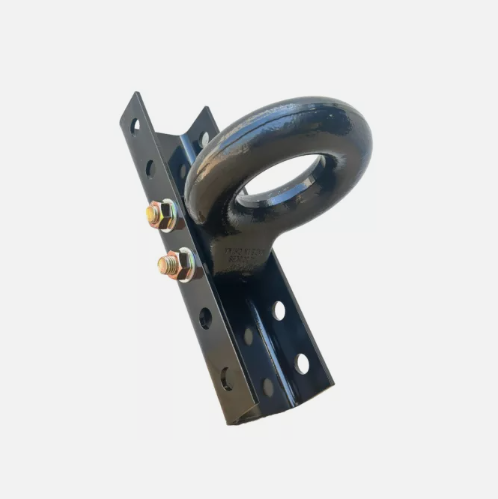

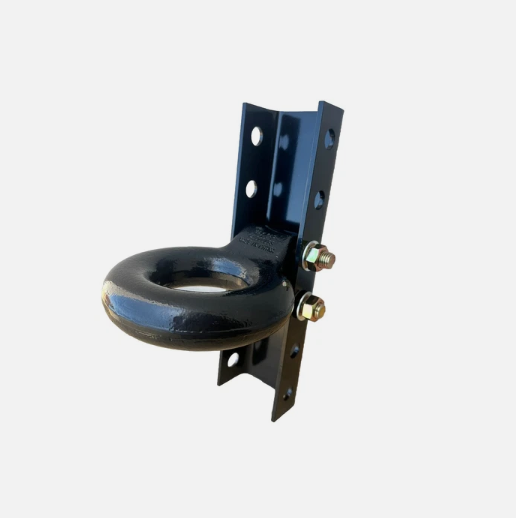

Engineered for variable height heavy duty pintle hook towing and off road rescue, this 3 inch channel mount adjustable lunette ring solves trailer levelling issues when coupling different tow vehicles and trailers. Constructed from high grade carbon steel, the 3 inch inner diameter lunette ring mates with most standard pintle hooks, ball and pintle combinations and clevis bars. The heavy duty slotted channel design enables flexible vertical positioning, offering 7 1/2" maximum drop and 6 1/4" maximum rise, with overall assembly length of 12" 13", compatible with standard 2 inch hitch tube. Robust powder coated finish resists gravel impact, moisture and outdoor corrosion. Suitable for heavy duty pickups, commercial utility trailers, farm machinery, construction equipment and overlanding rigs, this adjustable lunette ring is indispensable towing hardware for variable height trailer coupling, farm hauling and emergency off road vehicle extraction. Add this height adjustable lunette assembly to your professional heavy haul towing & recovery kit.
Purpose built to resolve mismatched hitch trailer heights, this 3 inch adjustable lunette ring adopts slotted heavy duty channel structure. It delivers up to 7 1/2" max drop and 6 1/4" max rise for flexible vertical positioning, enabling users to fine tune lunette ring height to achieve level trailer towing across different tow vehicle chassis heights. Lock down fasteners firmly secure ring position after height setup to prevent shifting during highway transit, unpaved farm road hauling or bumpy off road travel. Verified load rating and mechanical fatigue test reports can be supplied upon batch order requestLippert。
Both the vertical adjustment channel and 3 inch lunette ring are manufactured from high quality carbon steel. The lunette ring is forged for enhanced toughness and tensile strength, while the thick wall channel resists bending and deformation under sustained heavy towing loads. Robust metal construction greatly lowers risks of cracking or permanent distortion under dynamic shock loads from uneven road hauling and off road snatch recovery scenarios, ideal for repeated commercial, agricultural and fleet use cycles。
Standard 3 inch inner diameter lunette ring is fully compatible with mainstream pintle hooks, ball pintle combo hitches and clevis bars. Overall assembly dimension: max drop 7 1/2", max rise 6 1/4", total length 12" 13", designed to fit standard 2 inch hitch tube. The smooth inner ring surface reduces wear on pintle hook contact surfaces during angular trailer pivoting. Simple bolt on installation onto vehicle hitch or trailer drawbar without complicated custom fabrication work。
Entire channel and lunette ring assembly are finished with heavy duty powder coating. This coating delivers excellent scratch, gravel impact and abrasion resistance together with anti rust performance against mud, rain, road grit and coastal salt spray. Multiple customized color options are available for fleet wide equipment color coding and visual identification for bulk order customers.
Built to withstand demanding commercial grade outdoor working conditions, this adjustable 3 inch channel style lunette ring performs reliably across mud, sand, snow, gravel and rocky trails. Widely applicable for heavy duty pickups, commercial cargo trailers, farm implements, construction machinery and overlanding rigs. Mainly used as height variable pintle coupling anchor point for heavy load trailer towing, farm site hauling, construction equipment transport and off road emergency vehicle extraction as core hardware for complete heavy haul towing and recovery kits。
For enhanced transparency for bulk purchasers, we can provide complete test documentation covering rated gross trailer weight capacity, material tensile strength, impact resistance and powder coating salt spray corrosion test. All performance data originates from real world lab testing, allowing buyers to assess the adjustable lunette ring based on measurable factual results instead of unsubstantiated marketing claims.

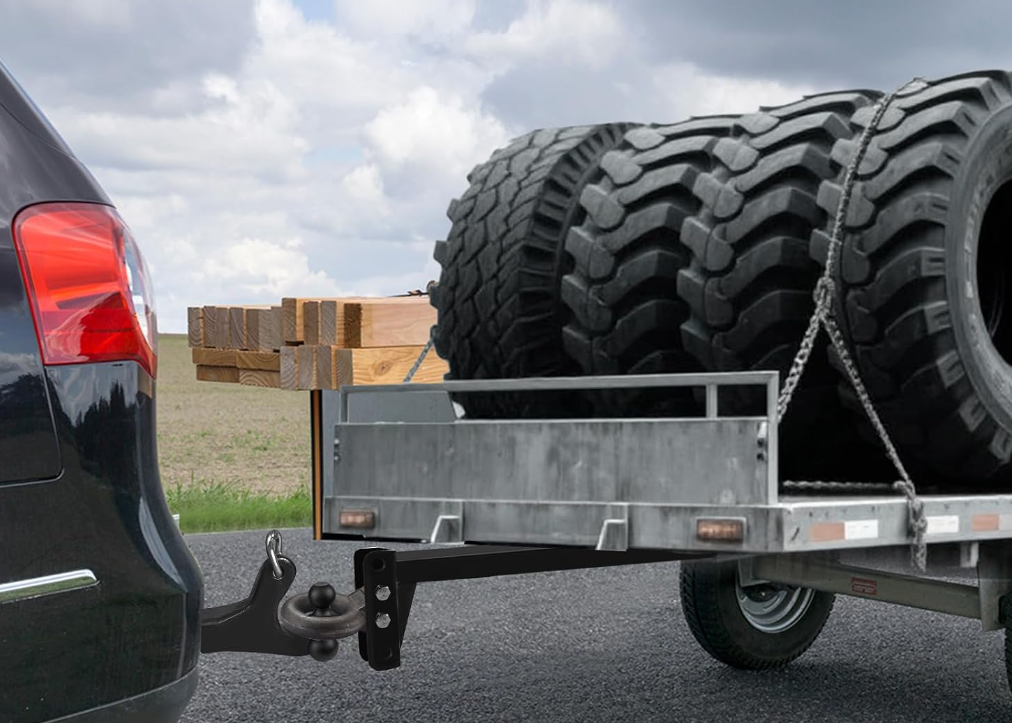

Deploy this 3 inch adjustable channel lunette ring for utility trailers, equipment trailers and cargo trailers where tow vehicle chassis height varies. Adjust ring height to obtain level trailer coupling for stable highway long distance heavy haul transportation.
This adjustable lunette ring provides dependable variable height towing point for farm implements, agricultural trailers and field machinery. Adapts to different tractor and pickup hitch heights, withstanding harsh farm site mud, dust and rough unpaved road conditions for daily agricultural hauling operations.
The 3 inch lunette ring serves as solid anchor point for heavy weight 4x4, pickup and overlanding rig recovery on beaches, desert dunes, deep mud pits and rocky trails. Connect with bow shackles and kinetic recovery straps to complete controlled heavy load vehicle extraction.
Adjustable Lunette Ring 3" Heavy Duty Channel works reliably for trailer towing and vehicle rescue in deep snow and icy environments. Its robust forged lunette ring and thick wall channel endure powerful pulling force under low temperature harsh winter working scenarios.
For heavy vehicles or equipment stuck on uneven rocky off highway trails, mount this adjustable channel lunette ring onto reinforced hitch points, cooperate with winch cables or heavy duty recovery straps for safe and controlled equipment or vehicle extraction.
For commercial trailer fleets, farm machinery convoys and heavy duty overlanding groups, this height adjustable channel style lunette ring solves multi vehicle height matching problems. Supply consistent reliable coupling anchor points for group trail rescue and routine heavy haul trailer towing assignments.
Item | Model | Process | Material | Lunette Ring Inner Dia | Max Drop | Max Rise | Overall Length | Fit Hitch Tube | Surface Finish | Color |
TKTC 2023E 008 | Adjustable Lunette Ring 3" Heavy Duty Channel | Hot Formed Channel & Forged Ring | High Quality Carbon Steel | 3" | 7 1/2" | 6 1/4" | 12" 13" | 2" | Powder Painted | Customized Color |
ThinkWell specializes in manufacturing off road recovery hardware and trailer towing accessories, including Adjustable Lunette Ring 3" Heavy Duty Channel, Forged Tow Eye 4 Bolt Holes, Forged Tow Eye 001, Forged Tow Eye 003, bow shackles, split shackles, hitch tighteners, hand winches, kinetic recovery straps and other 4x4 accessories. We support custom logo, custom color coating and custom packaging for bulk orders, with ISO9001, CE and SGS test certificates available upon request.
Adjustable Lunette Ring 3" Heavy Duty Channel adopts high quality carbon steel raw material. The lunette ring is forged, vertical adjustment channel is hot formed, finished with powder painted coating for heavy load variable height trailer towing and off road vehicle recovery scenarios. All performance should be judged against official product specifications and lab test data.
This adjustable channel style 3 inch lunette ring is designed for heavy duty 4×4 pickups, commercial cargo trailers, farm machinery, construction equipment and overlanding rigs. It functions as height adjustable pintle hook coupling anchor point for variable height trailer connection, heavy load off road emergency recovery, winching and farm site pulling work. Always install on reinforced hitch or frame mounting locations, lock adjustment hardware securely and operate strictly within rated gross trailer weight limit.
Standard surface treatment is powder painted finish. Multiple customized colors are supported for powder coated versions for bulk order clients. Alternative surface treatment solutions can be adjusted to satisfy special project requirements.
Yes. The carbon steel forged lunette ring and heavy duty formed channel can be deployed across a wide spectrum of heavy load off road recovery and towing environments including mud, sand, snow, gravel and rocky trails. Ensure proper bolt on installation on reinforced vehicle/trailer hitch frame, fully tighten adjustment locking fasteners and never exceed specified gross trailer weight limits.
Adjustable channel style lunette ring delivers vertical height adjustability (max drop 7 1/2", max rise 6 1/4") to accommodate different tow vehicle hitch heights for level trailer coupling. Fixed 4 bolt lunette tow eye has non adjustable mounting position. Adjustable channel model is preferred for mixed fleet operations with multiple tow vehicles, while fixed base models are suited for single vehicle dedicated trailer setupsLippert。
Yes. After operations in muddy, sandy or salt water coastal environments, thoroughly clean 3 inch lunette ring inner contact surface, slotted adjustment channel and locking bolt assembly. Clear away grit and debris, apply anti rust lubricant to adjustment bolt threads. Inspect lunette ring for deformation, cracks, coating peeling, and verify locking bolt tightness before every towing or recovery task. Immediately discontinue usage once cracks or permanent deformation are discovered.
Yes. Custom colors, laser engraved logos, packaging, and other product requirements can be discussed according to order quantity and production feasibility. All custom specifications must be formally confirmed with supplier before mass production.
Yes. ThinkWell provides flexible supply options for small batch and quick turnaround orders, subject to product availability, customization requirements, and production schedules.
ThinkWell specializes in off road rescue and trailer towing accessories and provides product development, metal forming & forging production, surface treatment processing, supply, and related services. Customers can contact the team to discuss product specifications, customization, packaging, and order requirements.
Yes. ThinkWell has experience supplying products to international markets, including North America, Europe, and Australia. The company also provides support from product selection and demand matching through order fulfillment and after sales service.
