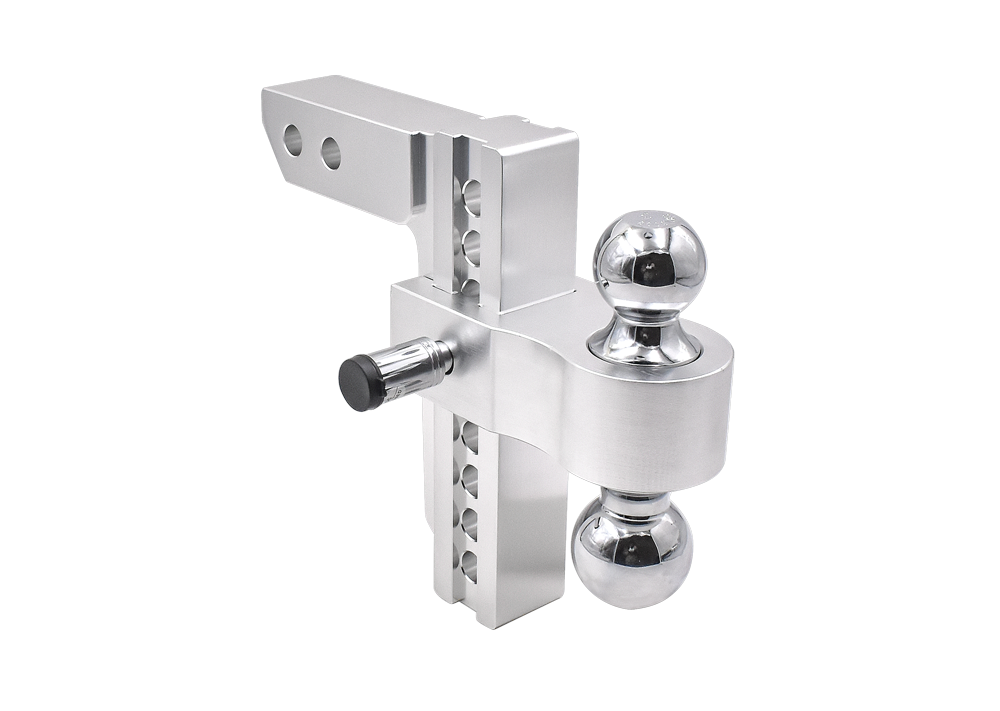

Trailer arm is a key component that connects towing vehicles with RVs, yachts, and flatbed trailers. Aluminum alloy adjustable trailer arms are becoming the preferred choice for an increasing number of users due to their lightweight, corrosion resistance, and high adaptability. This article provides a detailed explanation of the reasons for its selection and usage methods.
Why choose aluminum alloy adjustable trailer arm
Significant weight advantage: The density of aluminum alloy is about one-third that of steel. An aluminum alloy trailer arm with a carrying capacity of 5 tons typically weighs 3-4 kilograms, while carbon steel products of the same specifications weigh 8-10 kilograms. The direct benefit of lightweighting is that it is easy and labor-saving for single person installation and disassembly, and it is not easy to fatigue after long-term use.
Natural corrosion resistance: The surface of aluminum will form a dense oxide film, which can resist rain, snow, and salt spray erosion without additional coating. For users in coastal areas or off-road players who frequently wade through water, this feature means a longer lifespan and lower maintenance costs.
Height adaptation adjustable: The adjustable design allows the same trailer arm to adapt to towing equipment of different heights. Whether it is a low chassis road trailer, a medium height RV, or an off-road trailer with a large ground clearance, horizontal traction can be achieved by adjusting the height of the ball joint, avoiding safety hazards caused by "tilting" or "trailing".
Select key points
Confirm the bearing capacity level: Select based on the total weight of the towing equipment, and it is recommended to leave a 20% margin. The 5-ton class is suitable for most RVs and yachts, and heavy equipment should be selected in the 8-ton class or above.
Check the specifications of the ball head: it must be matched with the coupling of the towing equipment.
Verify the size of the square mouth: The standard is 2 inches, measure the inner diameter of the square mouth of the trailer bar of the tractor before insertion.
Instructions for use
Clean the inside of the trailer bar square mouth at the rear of the tractor, remove rust and foreign objects. Check for any deformation or cracks on the inner wall of the square mouth. Check for any damage to the insertion end of the trailer arm.
Adjust the height of the ball head
Release the height adjustment locking device on the trailer arm. Measure the height of the coupling of the towing equipment above the ground. With this height as the target, move the ball socket up and down to the appropriate position. Lock the adjustment mechanism and confirm that the ball head is stable and not shaking.

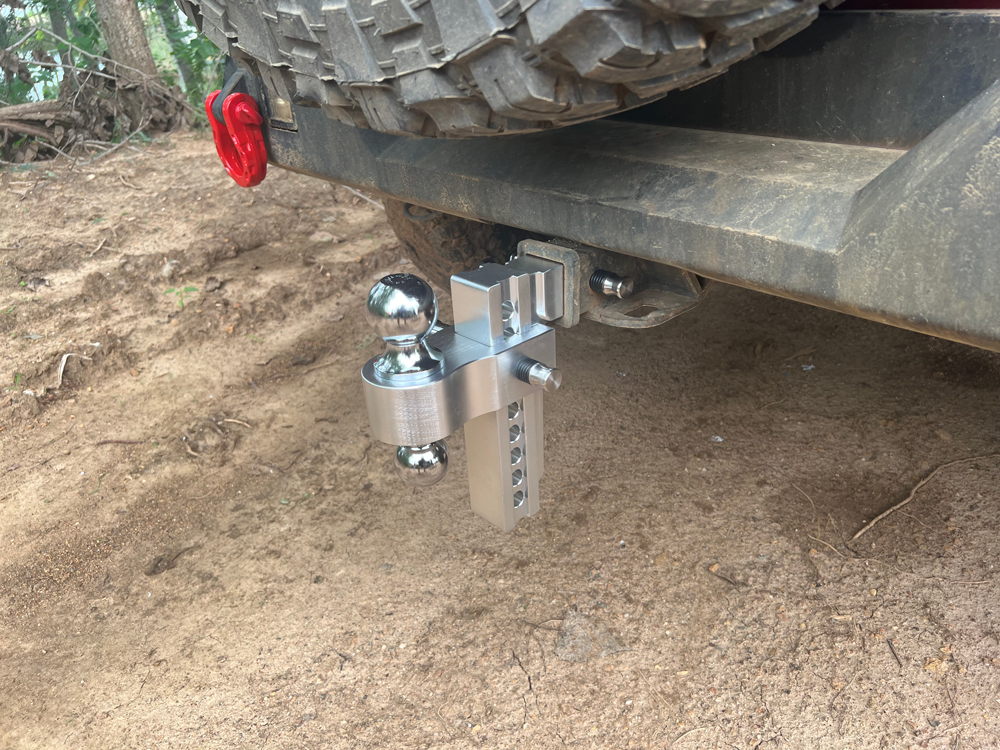

Insert square mouth
Fully insert the trailer arm into the square mouth and align it with the positioning hole. Insert high-strength positioning pin and fix it with an R-shaped retaining spring.
Connect the trailer device
Reverse to position the coupler directly above the ball head and slowly descend until the ball head fully enters the coupler. Press down the coupler lock handle and hear a "click" sound to confirm that the lock is in place. Insert security pin.
Precautions during use
Regularly check whether the adjustment mechanism is loose and whether the positioning pin is worn. Aluminum alloy has a lower hardness than steel to avoid direct friction and scratches with steel shackles. Rinse with clean water after each use to remove salt or sediment and prevent electrochemical corrosion. When not in use for a long time, apply anti rust wax and store in a dry place.
Comparison of Aluminum Alloy and Carbon Steel Selection
Aluminum alloy selection: Emphasize lightweight, require frequent disassembly and assembly, often used in humid or coastal environments, and have sufficient budget.
Choose carbon steel: limited budget, extreme heavy-duty trailer, no concern for weight and maintenance.
Conclusion
The aluminum alloy adjustable trailer arm integrates lightness, corrosion resistance, and flexibility, making towing preparation easy and fast. One adjustment, long-term use, one arm compatible with multiple trailers - this is exactly the convenience that modern trailer life should have. Choose the right tool to make every connection effortless.
