When towing heavy trailers or recovering stuck 4x4 vehicles, standard open tow hooks risk strap slippage and catastrophic failure. A heavy-duty closed-loop trailer towing shackle creates a 100% secure anchor point that safely transfers dynamic pulling loads during off-road recovery and highway towing.
Key Types of Towing Shackles
Specification Table for Heavy-Duty Trailer Towing Shackles and Recovery Gear
Shackle Type | Material & Build | Best Application | Rated Load (WLL / MBS) |
Drop-Forged Bow Shackle | Heat-treated alloy steel with powder coating | Multi-angle 4x4 recovery & winch snatch blocks | 4.75T WLL / 28.5T Breaking Strength |
D-Ring Towing Shackle | Carbon steel with zinc-plated screw pin | Straight-line trailer towing & safety chain links | 4.75T WLL / 19T Breaking Strength |
UHMWPE Soft Shackle | High-modulus synthetic fiber with braided sleeve | Kinetic rope recovery & lightweight trail gear | 15T - 20T Breaking Strength |

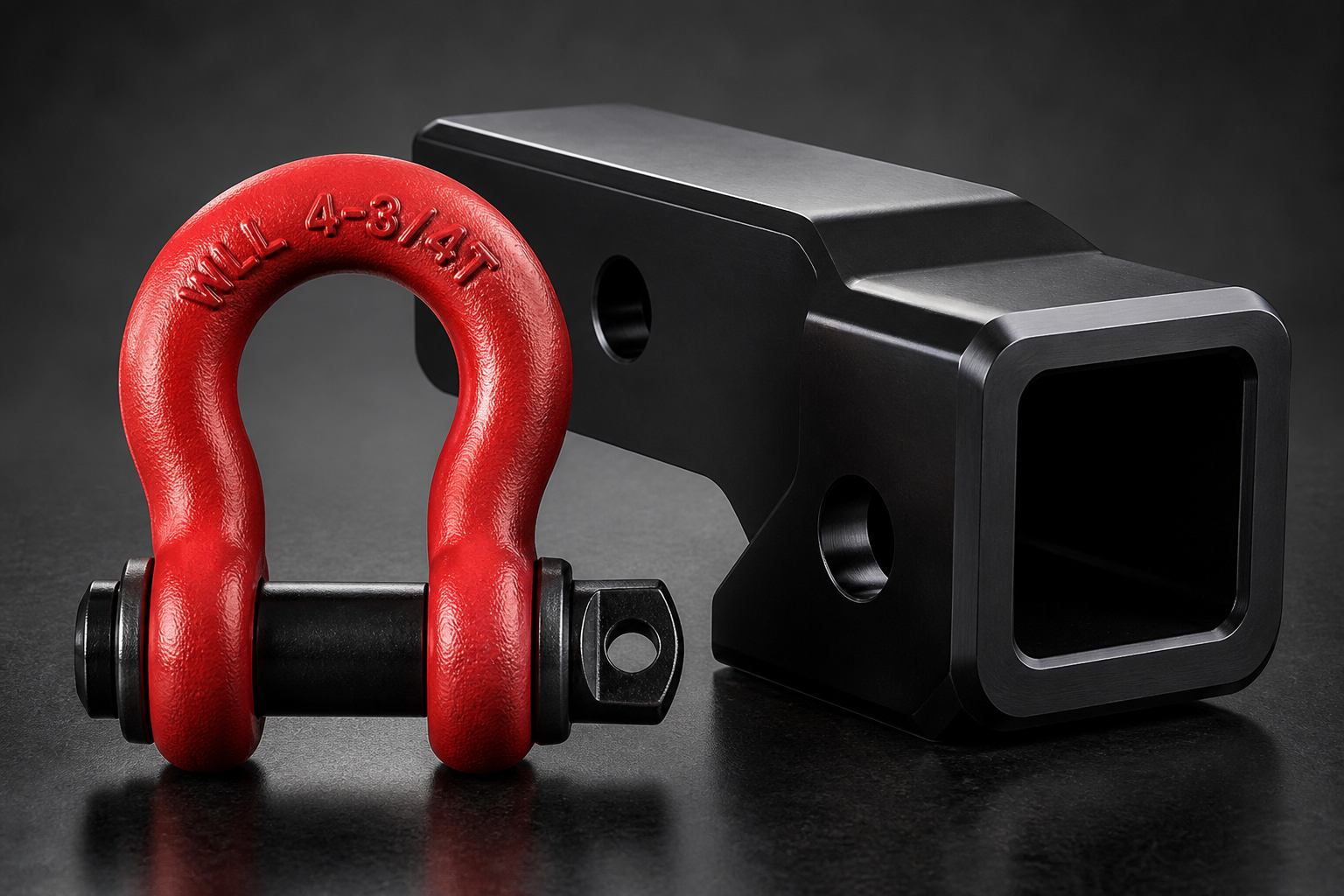

Shackle Hitch Receiver | CNC 6061-T6 aluminum or solid forged steel | Converting 2-inch receiver hitches into recovery points | Rated up to 45,000 lbs MBS |
Working Load Limit (WLL) and Safety Margins
Heavy-duty recovery shackles follow a strict 6:1 design safety factor in compliance with international rigging standards (ASME B30.26 and Australian ADR). A standard 3/4-inch bow shackle with a 4.75-Ton (9,500 lbs) Working Load Limit (WLL) withstands over 28.5 Tons (57,000 lbs) of ultimate breaking strength. This ensures peace of mind when a mired vehicle creates sudden kinetic shock loads.
Why Drop-Forged Steel Matters
Quality towing shackles are precision drop-forged from high-grade alloy steel (such as 40Cr or 42CrMo) rather than brittle cast iron. Die-forging aligns continuous internal metal grain along the contour of the shackle bow, delivering unmatched tensile ductility. Dual-layer surface finishing—electro-galvanizing topped with epoxy powder coating—provides over 500 hours of salt spray corrosion resistance.
Essential Rigging and Safety Rules
The Quarter-Turn Rule: Hand-tighten the threaded screw pin completely, then back it off 1/4 turn to prevent thread binding under heavy tension.

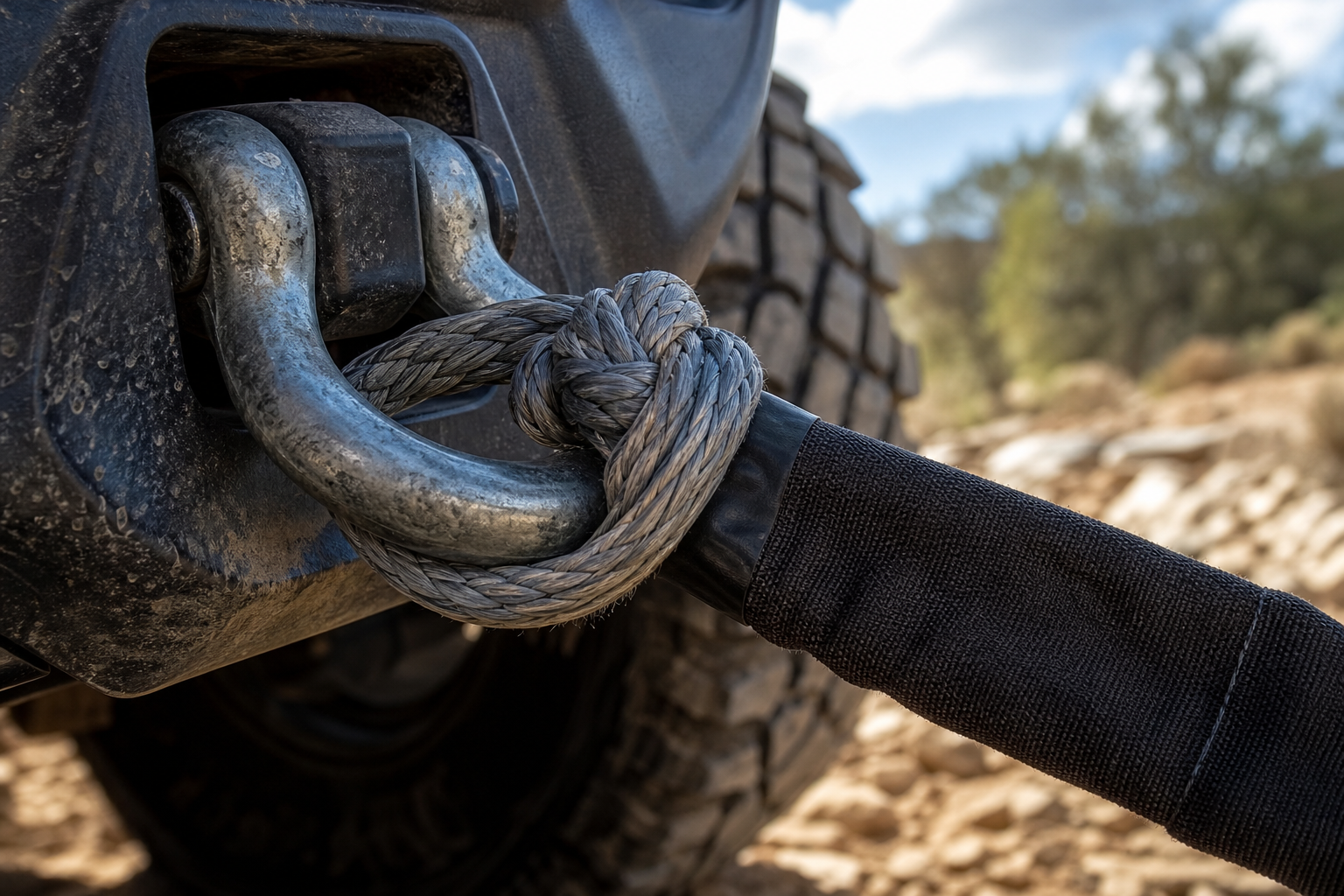

Proper Soft Shackle Connection: Ensure the synthetic soft shackle loop completely wraps around the anchor point or steel shackle before interlocking with the eye loop of your kinetic recovery rope.
Use Anti-Rattle Isolators: Install polyurethane isolator washers to eliminate road noise and protect vehicle bumpers from metal-on-metal wear.
