Thinkwell
Powder Painted
Box + Carton + Pallet
Customized Color
Off-road Recovery
| Quantity: | |
|---|---|

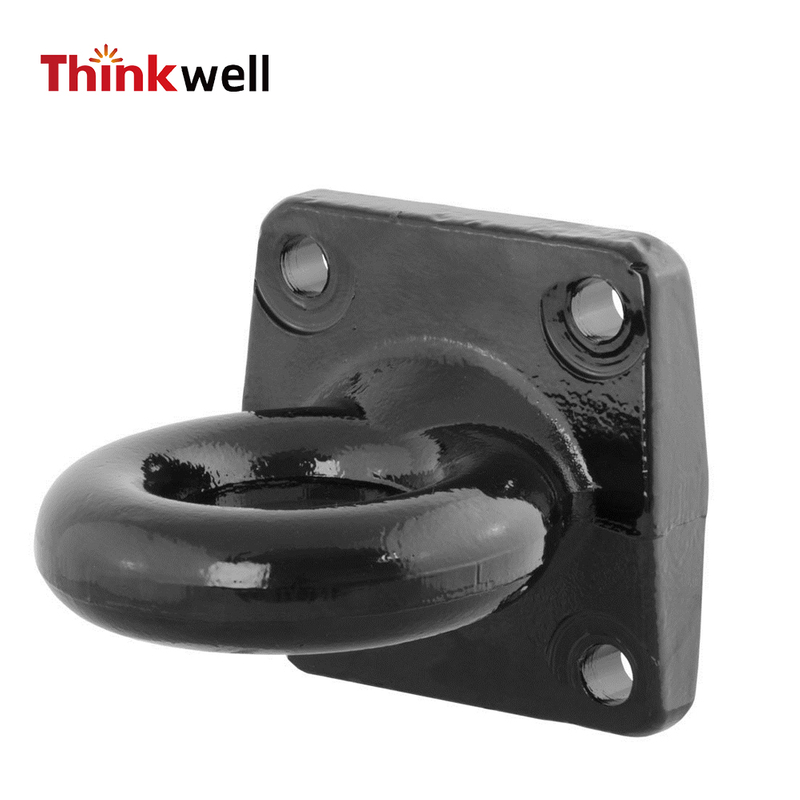

Engineered for extreme heavy duty trailer towing and off road rescue operations, this 4 bolt holes forged lunette tow eye serves as robust fixed coupling anchor point for heavy weight trailers, farm machinery and 4x4 vehicles. Constructed from high grade carbon steel via integral hot drop forging craft, the lunette ring features 2-1/2 inch inner ring diameter, 4-1/2 inch square center to center 4 bolt mounting pattern and 3/4 inch mounting hole diameter, supporting max gross trailer weight up to 42,000 lbs GTW. It features 7-1/2" max drop, 6-1/4" max rise, overall length 12" 13", compatible with standard 2 inch hitch tube. The robust forged structure pairs with tough powder coated finish to resist gravel impact, moisture and salt corrosion. Suitable for heavy duty pickups, commercial trailers, farm equipment, utility trailers and overlanding rigs, this 4 bolt lunette tow eye is critical chassis mount hardware for heavy haul trailer coupling, pintle hook matching and emergency off road vehicle extraction. Keep this heavy load tow eye as core component of your professional heavy duty towing & recovery kit.
Purpose built for commercial grade heavy load trailer towing, this 4 bolt forged lunette tow eye reaches 42,000 lbs max gross trailer weight capacity. The one piece forged lunette ring is engineered to withstand tremendous static towing load as well as transient dynamic shock loads generated during trail rescue and uneven road hauling. Verified load rating, tensile strength and fatigue test reports can be supplied upon batch order requestReese Towp....
The whole lunette tow eye adopts integral hot drop forged high quality carbon steel raw material. Forged manufacturing delivers continuous compact metal fiber flow, greatly improving toughness, impact resistance and tensile strength compared to cast alternatives. It effectively reduces risks of crack, bending or fracture under heavy load towing and snatch recovery conditions, ideal for long term commercial fleet and farm site heavy haul cycles
Precision machined 4 1/2 inch square bolt pattern (center to center), with four 3/4 inch diameter mounting holes, enables stable bolt on installation onto reinforced trailer frame, vehicle chassis or pintle mount base. Max drop 7 1/2", max rise 6 1/4", overall length 12" 13", fits standard 2 inch hitch tube. The symmetrical 4 hole base evenly distributes heavy towing stress, avoiding local stress concentration during long distance heavy hauling. Compatible with most standard pintle hooks for reliable trailer coupling connection.
Heavy duty powder coated finish covers the entire forged tow eye body. This coating offers superior scratch, gravel impact and abrasion resistance, together with anti rust performance against mud, rain, road grit and coastal salt spray. Multiple customized color options are available for fleet wide equipment color coding and visual identification for bulk order customers.
Built to withstand demanding commercial grade outdoor working conditions, this 4 bolt forged lunette tow eye performs reliably across mud, sand, snow, gravel and rocky trails. Widely applicable for heavy duty pickups, commercial cargo trailers, farm machinery, utility trailers and overlanding rigs. Mainly used as permanent fixed coupling anchor point for heavy load trailer pintle hook connection, off road emergency extraction, heavy duty winching operations and farm site pulling tasks as indispensable hardware for complete heavy haul towing and recovery kits.
For enhanced transparency for bulk purchasers, we can provide complete test documentation covering gross trailer weight capacity, material tensile strength, impact resistance and powder coating salt spray corrosion test. All performance data originates from real world lab testing, allowing buyers to assess the 4 bolt holes forged tow eye based on measurable factual results instead of unsubstantiated marketing claims.
Deploy 4 bolt holes forged lunette tow eye as heavy load coupling anchor for large utility trailers, equipment trailers and cargo trailers. Pair with matching pintle hook to achieve stable 42000 lbs level gross trailer weight towing for highway long distance heavy haul transportation.
This 4 bolt forged tow eye provides dependable fixed towing point for farm implements, agricultural trailers and field machinery. Withstands harsh farm site mud, dust and rough unpaved road conditions for daily agricultural hauling operations.
The forged lunette ring serves as solid anchor point for heavy weight 4x4, pickup and overlanding rig recovery on beaches, desert dunes, deep mud pits and rocky trails. Connect with bow shackles and kinetic recovery straps to complete controlled heavy load vehicle extraction.
Forged Tow Eye 4 Bolt Holes works reliably for trailer towing and vehicle rescue in deep snow and icy environments. Its robust forged structure endures powerful pulling force under low temperature harsh winter working scenarios.
For heavy vehicles or equipment stuck on uneven rocky off highway trails, mount this 4 bolt lunette tow eye onto reinforced frame points, cooperate with winch cables or heavy duty recovery straps for safe and controlled equipment or vehicle extraction.
For commercial trailer fleets, farm machinery convoys and heavy duty overlanding groups, 4 bolt forged lunette tow eyes are critical chassis mount towing hardware. Supply consistent reliable anchor points for group trail rescue and routine heavy haul trailer towing assignments.
Item | Model | Process | Material | Inner Ring Diameter | Bolt Pattern | Mounting Hole Dia | GTW Capacity | Max Drop | Max Rise | Overall Length | Surface Finish | Color |
TKTC 2023E 007 | Forged Tow Eye 4 Bolt Holes | Hot Drop Forging | High Quality Carbon Steel | 2-1/2" | 4-1/2" Square (Center to Center) | 3/4" | 42000 lbs | 7-1/2" | 6-1/4" | 12" 13" | Powder Painted | Customized Color |
ThinkWell specializes in manufacturing off road recovery hardware and trailer towing accessories, including Forged Tow Eye 4 Bolt Holes, Forged Tow Eye 001, Forged Tow Eye 003, bow shackles, split shackles, hitch tighteners, hand winches, kinetic recovery straps and other 4x4 accessories. We support custom logo, custom color coating and custom packaging for bulk orders, with ISO9001, CE and SGS test certificates available upon request.
Forged Tow Eye 4 Bolt Holes adopts high quality carbon steel raw material, manufactured by one piece hot drop forging process, finished with powder painted coating for heavy load trailer towing and off road vehicle recovery scenarios. All performance should be judged against official product specifications and lab test data.
This 4 bolt holes forged lunette tow eye is designed for heavy duty 4×4 pickups, commercial cargo trailers, farm machinery, utility trailers and overlanding rigs. It functions as fixed lunette ring anchor point for pintle hook trailer coupling, heavy load off road emergency recovery, winching and farm site pulling work. Always install on reinforced frame or chassis mounting locations and operate strictly within rated 42000 lbs GTW working load limit.
Standard surface treatment is powder painted finish. Multiple customized colors are supported for powder coated versions for bulk order clients. Alternative surface treatment solutions can be adjusted to satisfy special project requirements.
Yes. The drop forged carbon steel 4 bolt lunette tow eye can be deployed across a wide spectrum of heavy load off road recovery and towing environments including mud, sand, snow, gravel and rocky trails. Ensure proper bolt on installation on reinforced vehicle/trailer frame and never exceed specified gross trailer weight limits.
4 bolt square base lunette tow eye distributes heavy towing force evenly through four mounting points, greatly reducing single bolt over stress risk for 42000 lbs level heavy haul applications. Ordinary 2 bolt tow eye is more suited for medium light duty towing. This 4 bolt model features standard 2 1/2" lunette ring to match mainstream heavy duty pintle hooks, specially oriented for commercial, agricultural and heavy duty off road heavy haul scenarios.
Yes. After operations in muddy, sandy or salt water coastal environments, thoroughly clean lunette ring inner surface and 4 bolt mounting assembly. Clear away grit and debris, apply anti rust lubricant to mounting threads. Inspect lunette ring for deformation, cracks, coating peeling and mounting bolt tightness before every towing or recovery task. Immediately discontinue usage once cracks or permanent deformation are discovered.
Yes. Custom colors, laser engraved logos, packaging, and other product requirements can be discussed according to order quantity and production feasibility. All custom specifications must be formally confirmed with supplier before mass production.
Yes. ThinkWell provides flexible supply options for small batch and quick turnaround orders, subject to product availability, customization requirements, and production schedules.
ThinkWell specializes in off road rescue and trailer towing accessories and provides product development, forging production, surface treatment processing, supply, and related services. Customers can contact the team to discuss product specifications, customization, packaging, and order requirements.
Yes. ThinkWell has experience supplying products to international markets, including North America, Europe, and Australia. The company also provides support from product selection and demand matching through order fulfillment and after sales service.
