G2130 Bow Shackle

Views: 695     Author: Thinkwell     Publish Time: 2025-06-27      Origin: G2130 Bow Shackle

Inquire

G2130 Bow Shackle is a high-strength connecting device widely used in lifting, marine, construction, and other industries. Its body is made of high-quality carbon steel, offering excellent tensile strength and durability, while the pin is constructed from alloy steel for enhanced load-bearing capacity and safety. The shackle’s breaking load reaches 4 times (standard) or 6 times (after heat treatment) its working load limit (WLL), ensuring reliability under extreme conditions.

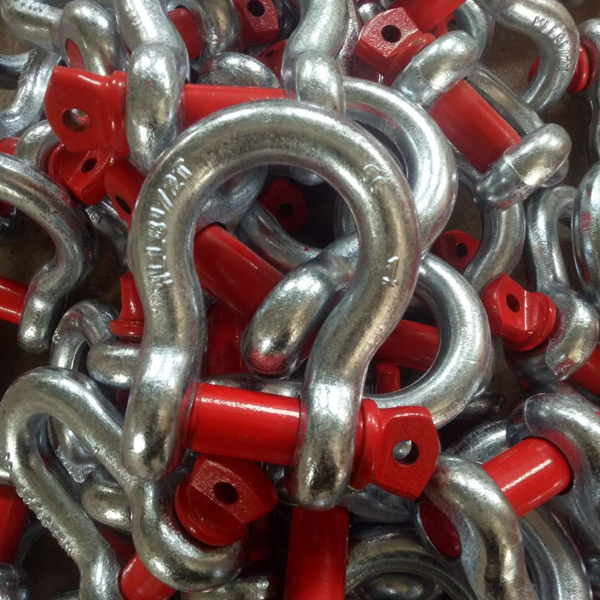

G2130 Bow Shackle

For surface treatment, it offers three options: galvanizing, powder coating, and electrophoretic black coating, significantly improving corrosion and rust resistance for different environments. The galvanized version suits humid conditions, while powder-coated and electrophoretic black variants provide better wear resistance and aesthetics.

Compact in design and flexible in operation, the G2130 Bow Shackle is an ideal choice for heavy-duty connections, balancing safety and cost-effectiveness.

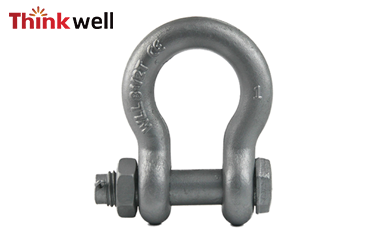

G2130 Bow Shackle

G2130 Bow Shackle
