Thinkwell
Powder Painted
Box + Carton + Pallet
Customized Color
Off-road Recovery
| Quantity: | |
|---|---|

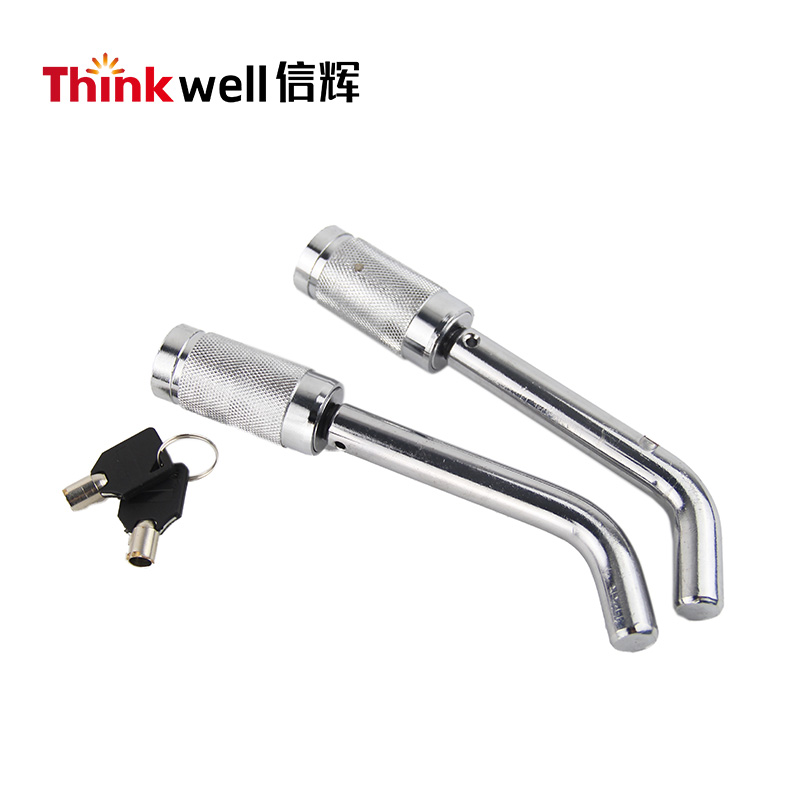

Thinkwell TKTC 1020 5/8 inch heavy duty hitch lock is engineered for Class III V heavy load towing scenarios. Built with thicker gauge high strength steel, this heavy duty locking pin replaces standard unsecured hitch pins for 2" 2 1/2" hitch receivers. It delivers robust shear resistance for heavy weight RVs, heavy duty utility trailers and off road recovery rigs, while safeguarding ball mounts, hitch adapters and towing accessories against theft. Multiple latch span lengths cover diverse receiver depths. OEM & ODM customization is available, backed by a 12 month factory warranty.
5/8 inch solid steel pin features superior shear resistance compared to 1/2" hitch locks, purpose built for heavy load towing conditions. Powder painted outer finish fends off road salt, mud, rain and UV exposure. Anti prying tubular lock core stands up to brute force tampering in field and off road environments.
Specially matched for heavy duty pickup trucks, large size SUV factory installed and aftermarket 2" 2 1/2" hitch receivers. A wide selection of latch span sizes eliminates fit issues for deep wall extended receivers.

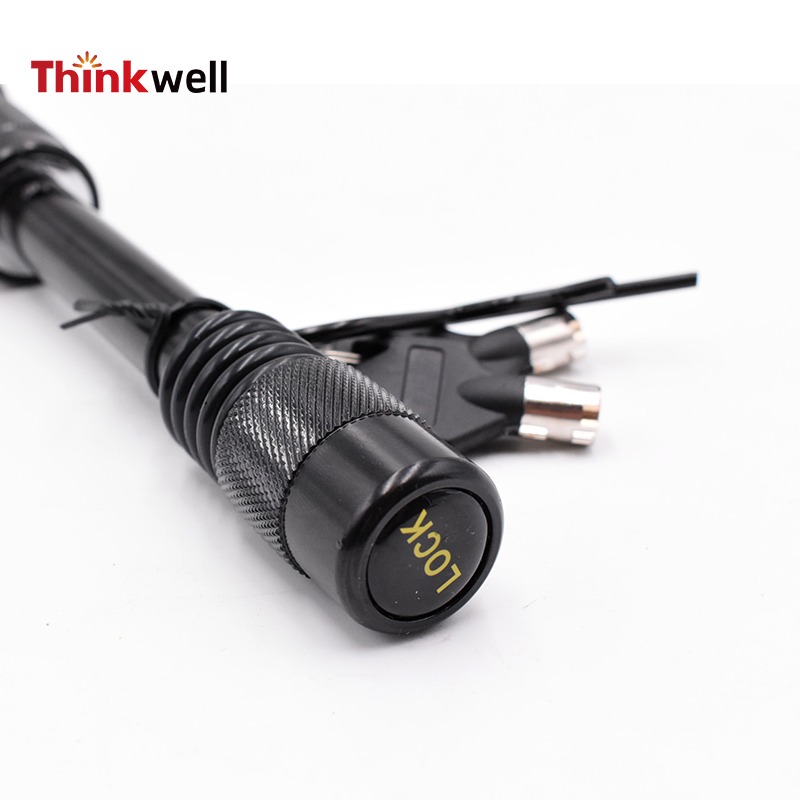

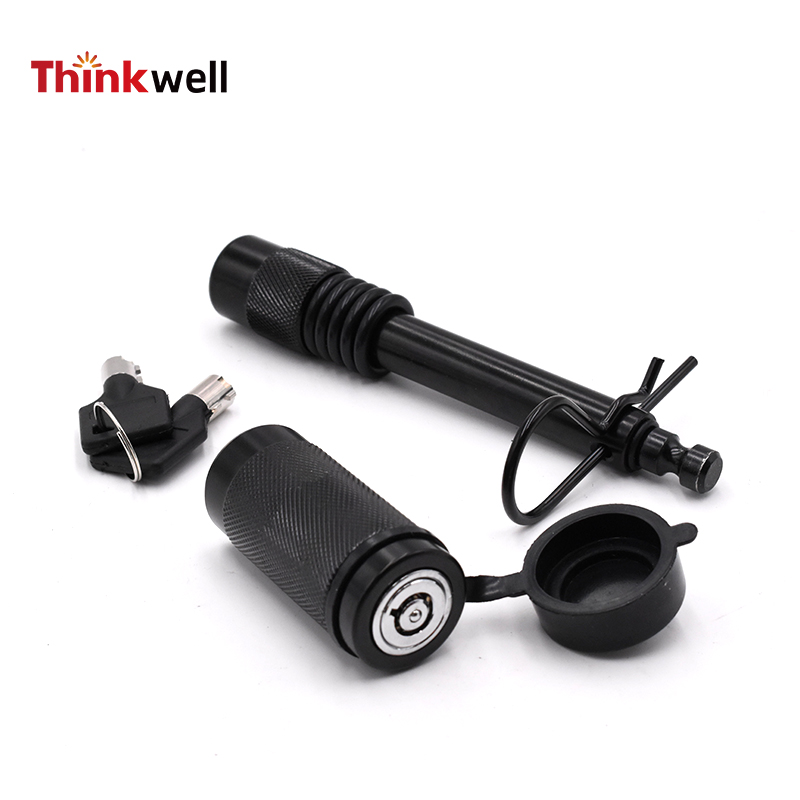

Knurled textured lock housing for non slip handling even with wet or gloved hands. Integrated rubber dust cap seals lock cylinder from sand, moisture and grime, extending service life. Two tubular keys supplied per unit as spare backups; no special hand tools required for quick installation and removal.
Multiple in stock latch span lengths covering most heavy duty receiver configurations Custom paint colors, laser etched brand logos, custom retail box packaging for e commerce sellers Multi pack bundles for fleet operators, rental yards and wholesale distributors Small volume trial orders supported for market testing
Every hitch lock undergoes dimensional and locking function inspection prior to dispatch. Packaging workflow: individual gift box → export carton → pallet loading, securing goods during long distance sea and land transport. 12 month manufacturer warranty covers production defects.

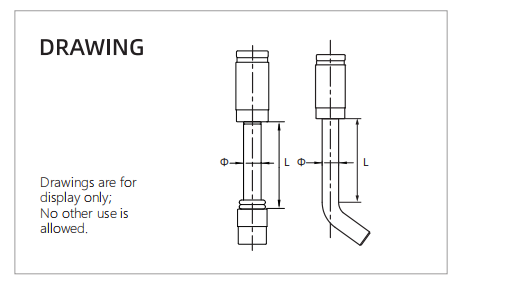

| Model No. | Lock Pin Diameter | Latch Span(L) |
| TKTC 1020 001 | 5/8" | 2-7/8" |
| TKTC 1020 002 | 5/8" | 3-1/4" |
| TKTC 1020 003 | 5/8" | 3" |
| TKTC 1020 004 | 5/8" | 3-5/8" |
| TKTC 1020 005 | 5/8" | 3-5/8" |
| TKTC 1020 006 | 5/8" | 3-5/8" |
| TKTC 1020 007 | 5/8" | 3-5/8" |
| TKTC 1020 008 | 5/8" | 4" |
Heavy duty pickup & large SUV Class III V hitch receiver protection
Full size RV, travel trailer and horse trailer towing security
Heavy weight utility, farm and construction site equipment trailers
Off road vehicle recovery setups, overlanding expedition rigs
Prevent ball mount, hitch adapter and weight distribution hitch theft
1. Flip open the rubber dust shield cap, insert key and rotate to unlock the internal locking mechanism.
2. Retract the locking plunger, feed the pin fully through the aligned holes of your hitch receiver and ball mount assembly.
3. Release the lock plunger to engage locking position, pull out the key and close dust proof cap.
4. Physically tug ball mount to confirm positive lock engagement before starting your tow or leaving vehicle unattended.
5. Apply light lubricant to lock core periodically for coastal, dusty or winter road operating environments.
Thinkwell specializes in heavy duty trailer hardware and off road recovery accessories. We manage full cycle manufacturing including steel processing, precision machining, surface finishing and finished product QC. We accommodate both mass volume wholesale and small trial order batches. Custom logo, special color finishes and retail ready packaging can be tailored for Amazon sellers, offline retailers and project purchasers.
