Japanese Open Body Turnbuckle is a standard industrial rigging tension fastener, manufactured strictly per JIS A5540 and CB/T3818 marine standards. Also known as wire rope tensioner and cable tightener, it features left-right reverse threads to quickly adjust the length and tension of steel ropes, tie rods and rigging lines, widely used in construction, marine, power and stage truss projects.
Different from closed turnbuckles, this open hollow structure is lightweight and allows visual thread inspection. It comes in three types: OO (eye-eye), OC (eye-hook), CC (hook-hook), adapting to permanent fixation and frequent disassembly working scenarios.
Complies with JIS A5540 and CB/T3818 standards, fully qualified for global export and industrial engineering matching.
Hollow open-body design enables direct inspection of thread wear, rust and damage, easy daily maintenance.
Dual left/right threads allow quick length and tension adjustment by hand, no tools needed, high efficiency.
Covers M6-M64 specifications with OO/OC/CC three styles for all tensioning scenarios.
Hot-forged carbon steel/alloy steel/stainless steel, breaking load reaches 3 times of rated working load, sturdy and anti-deformation.
Electro-galvanized, hot-dip galvanized and SUS304/316 stainless steel options for outdoor, marine and salt-spray environments.
Support lock nut installation to prevent vibration loosening, ensuring long-term stable tension performance.
Ideal for marine outfitting, building curtain walls, steel structures, power lines, stage trusses, guardrails and billboard cable tensioning.
18+ years professional experience in JIS standard open turnbuckle production, focusing on high-quality rigging hardware.
Integral hot forging process + batch tensile testing, 100% standard compliant and qualified before delivery.
Support customized size, load grade, surface treatment, logo and packaging for personalized orders.
Full M6-M36 conventional sizes in stock, support bulk wholesale and urgent orders.
No middleman markup, cost-effective industrial-grade products with bulk discount.
Provide model selection guidance and after-sales service, solve installation and usage problems timely.

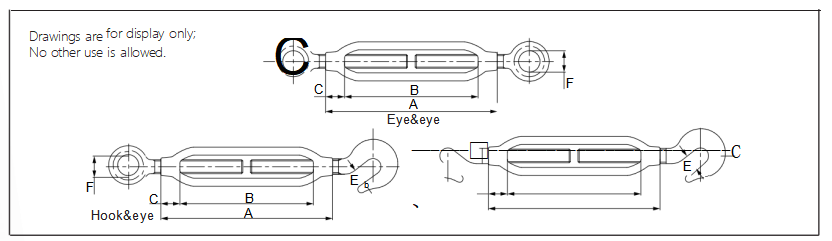

Part No | Spec(mm) | Turnbuckle body | Eye&eye Turnbuckle | Hook&hook Turnbuckle | Hook&eye Turnbuckle | |||||||
A | B | C | Weight(kg) | F | Weight(kg) | E | Weight(kg) | E | F | Weight(kg) | ||
TKDSJ-2017 -01 | 6 | 100 | 78 | 11 | 0.08 | 10 | 0.25 | 9 | 0.112 | 9 | 10 | 0.114 |
TKDSJ-2017 -02 | 8 | 125 | 100 | 12.5 | 0.15 | 12 | 0.47 | 9 | 0.215 | 9 | 12 | 0.218 |
TKDSJ-2017 -03 | 9 | 150 | 120 | 12.5 | 0.17 | 16 | 0.64 | 11 | 0.29 | 11 | 16 | 0.293 |
TKDSJ-2017 -04 | 12 | 200 | 164 | 18 | 0.29 | 20 | 1.26 | 16 | 0.57 | 16 | 20 | 0.585 |
TKDSJ-2017 -05 | 16 | 250 | 202 | 21.5 | 0.52 | 22 | 2.27 | 19 | 1.03 | 19 | 22 | 1.05 |
TKDSJ-2017 -06 | 19 | 300 | 250 | 25 | 0.85 | 28 | 3.91 | 20 | 1.77 | 20 | 28 | 1.78 |
TKDSJ-2017 -07 | 22 | 325 | 269 | 28 | 1.17 | 33 | 5.74 | 21 | 2.6 | 21 | 33 | 2.58 |
TKDSJ-2017 -08 | 25 | 350 | 285 | 32.5 | 1.69 | 35 | 8.21 | 26 | 3.73 | 26 | 35 | 3.7 |
TKDSJ-2017 -09 | 28 | 400 | 310 | 45 | 3.51 | 36 | 16.4 | 34 | 7.44 | 34 | 36 | 7.52 |
It is a professional rigging tension component used to adjust and fix the tension of steel ropes and tie rods, widely adopted in marine, construction, electric power, stage truss and outdoor fixing projects.
Open body turnbuckles adopt hollow open design, lightweight and allow visual thread inspection for easy maintenance. Closed turnbuckles are fully enclosed with invisible internal condition, more suitable for non-inspection fixed scenarios.
Three mainstream types: OO (eye-eye) for long-term fixed installation; OC (eye-hook) for quick assembly; CC (hook-hook) for temporary and frequent disassembly use.
Yes. All products strictly follow JIS A5540 and CB/T3818 standards, with professional load and tensile testing to meet export and engineering quality requirements.
We offer three surface treatments: electro-galvanized (cost-effective, daily use), hot-dip galvanized (high anti-corrosion, outdoor use), SUS304/316 stainless steel (salt-spray & marine environment).
Yes. We provide full OEM/ODM customization, including special sizes, custom load grades, logo printing and exclusive packaging per customer demands.
Our hot-forged turnbuckles have 3 times safety breaking load, optional anti-loosening nuts for stable long-term use. Avoid overload and conduct regular inspection for maximum safety.
Standard M6-M36 sizes are in stock for fast delivery. Custom orders take 3-7 working days. We support large-volume long-term cooperative supply.
