Off Road Trailer Shackle: The 'life Buckle' in The Wilderness

In off-road rescue and towing scenarios, although the shackle is an inconspicuous small component, it is the core safety hub connecting the trailer rope and the vehicle, and is praised by experienced off-road personnel as the "life buckle". Its reliability directly determines the success or failure of the entire drag and drop system and personnel safety.

Core role and working principle

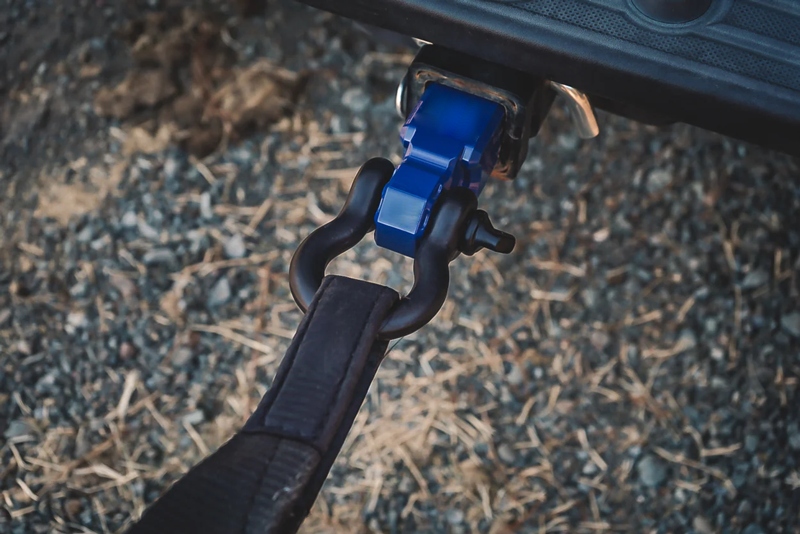

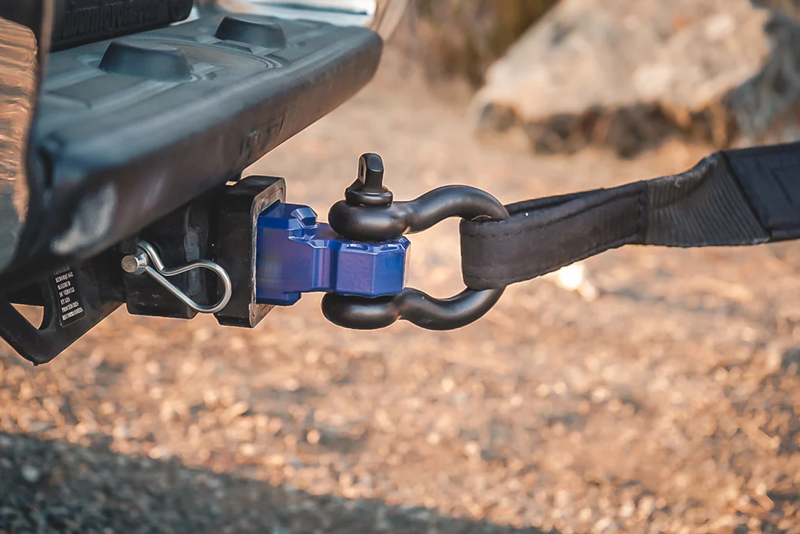

The main function of a shackle is to quickly and securely connect the trailer cable/strap to the trailer points of the vehicle (such as trailer hooks, chassis anchor points). Its working principle is simple and efficient: a sturdy metal body can withstand tension, and a closed loop is formed through an openable transverse pin (screw or bolt type) to evenly transmit force. During off-road bumpy, variable angle, and high impact towing processes, a qualified shackle can effectively prevent the connection point from accidentally falling off, avoiding the fatal "killer hook" phenomenon caused by the rebound of the trailer rope.

Key selection criteria

Choosing off-road shackles is not a child's play, and three key points need to be paid attention to:

Material and strength: It is necessary to select products forged from alloy steel and clearly label the working limit load. Common specifications such as 3/4 inch shackles typically have a working limit of 4.75 tons or more. Absolutely avoid using cast iron buckles or ordinary steel buckles from unknown sources.

Type and safety: Screw buckles are the most common and easy to use, but it is necessary to ensure that they are tightened; The bolt buckle is more secure but requires tools for disassembly. All shackles must be equipped with safety pins to prevent the horizontal pin from accidentally unscrewing during vibration.

Identification and certification: The legitimate shackle body should be clearly laser engraved with the working load limit, material, and certification standards. Choosing products that comply with international lifting standards such as CE and ASME is a basic guarantee.

The iron law of use and maintenance

Before use, it is necessary to check for cracks, wear, or deformation. Once discovered, it should be immediately scrapped. When using, make sure to apply force in a straight direction along the shackle buckle body to avoid lateral force, which will greatly reduce its strength. After each use, clean the sediment, check the threads, and apply a small amount of butter to the screw to prevent rust. Remember, the shackle is a load-bearing component rather than a decorative item, and its rated load must be greater than the maximum load of the trailer rope and the entire towing system.

In summary, in a wilderness full of uncertainty, a high-quality and correctly used shackle is the key guarantee for dragging teammates out of the quagmire and traveling to distant places together. It not only carries the weight of the vehicle, but also the heavy trust and safety between off-road partners.
