Snatch Block
ThinkWell
| Availability: | |
|---|---|
| Quantity: | |

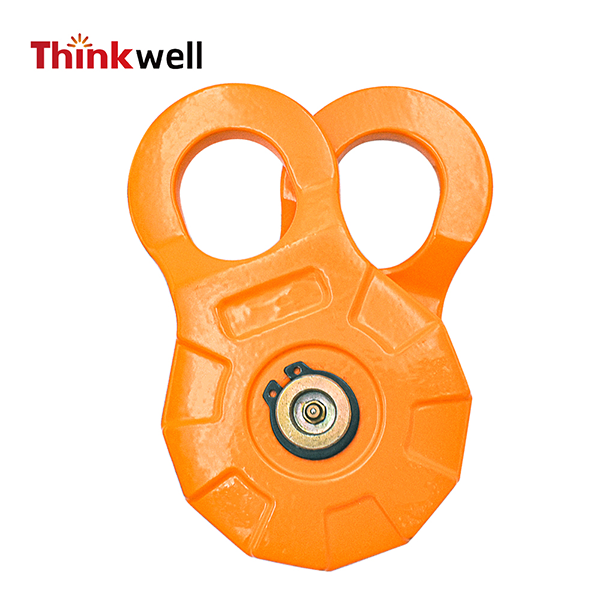

Forged Snatch Block
| Process | The board is forged; Pulley shaft for machining |
| Material | Plate, shaft, and wheel are 45 # C |
| Tensile strength | working tensile strength 10T; breaking tensile strength above 25T |
| Weight | 3.15kg |
| Surface treatment | The board is electroplated with zinc and sprayed with plastic; The pulley and shaft are electroplated with zinc |

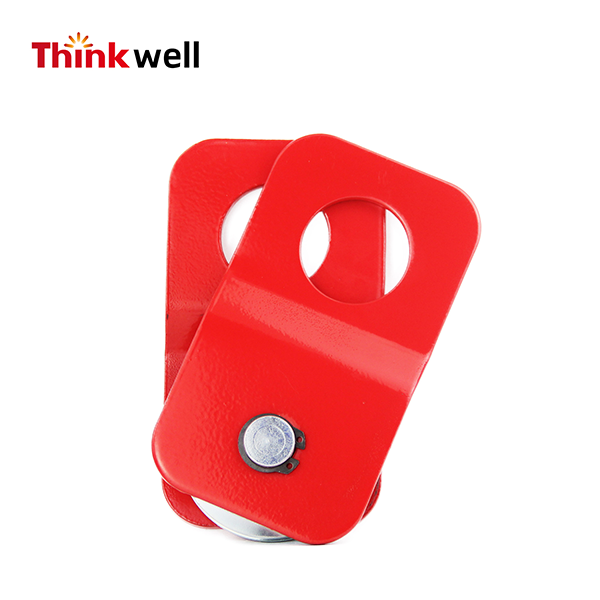

Stamping Snatch Block
| Process | The board is stamped; Pulley shaft for machining |
| Material | The board is Q235; The shaft and wheel are 45 # C |
| Tensile strength | 4T/8T/10T |
| Weight | 1kg/2.6kg/3.4kg |
| Surface treatment | The board is sprayed with plastic; The pulley and shaft are electroplated with zinc |
Forged Snatch Block
| Process | The board is forged; Pulley shaft for machining |
| Material | Plate, shaft, and wheel are 45 # C |
| Tensile strength | working tensile strength 10T; breaking tensile strength above 25T |
| Weight | 3.15kg |
| Surface treatment | The board is electroplated with zinc and sprayed with plastic; The pulley and shaft are electroplated with zinc |
Stamping Snatch Block
| Process | The board is stamped; Pulley shaft for machining |
| Material | The board is Q235; The shaft and wheel are 45 # C |
| Tensile strength | 4T/8T/10T |
| Weight | 1kg/2.6kg/3.4kg |
| Surface treatment | The board is sprayed with plastic; The pulley and shaft are electroplated with zinc |
