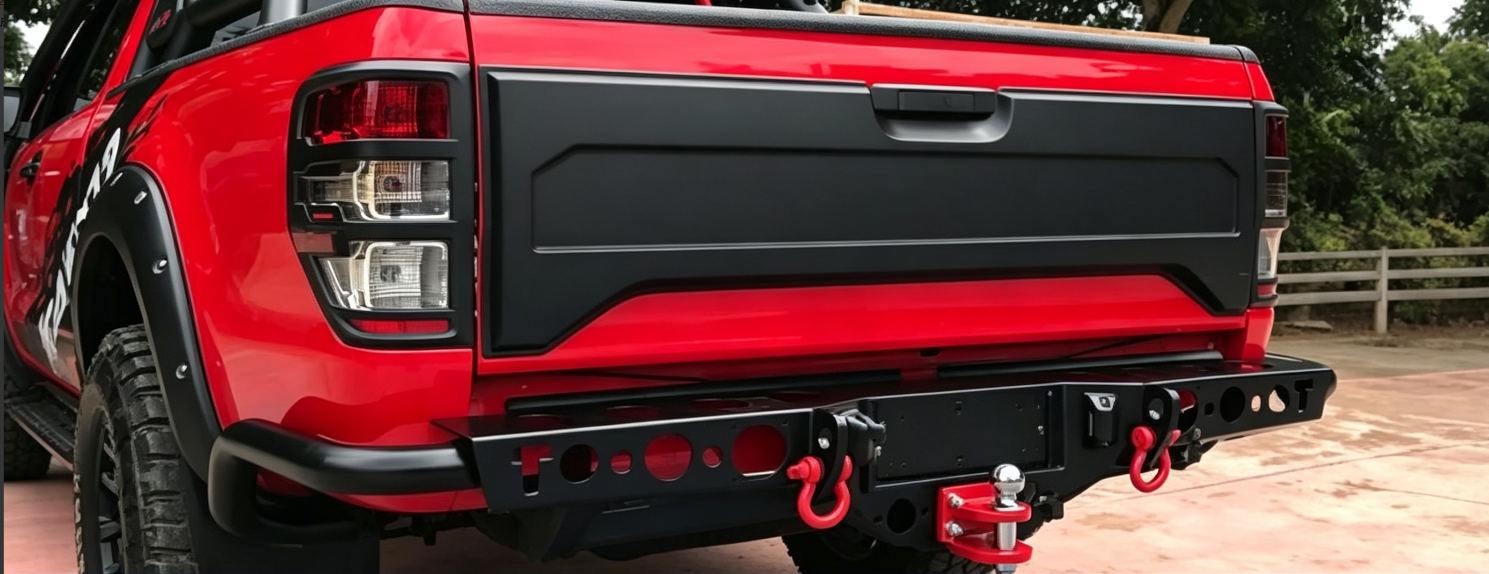

The Straight Tow Bar with Ball Head is a universal towing accessory designed for cars, vans, and light commercial vehicles. It features a straight long rod design with a 70.8 mm ball head and four screw holes for stable mounting. Built from forged steel with a stainless steel surface finish and antioxidant coating, this tow bar delivers reliable towing performance for caravans, yacht trailers, and cargo transport trailers. Its optimized ball joint position helps prevent interference with the rear bumper, maintaining safe clearance during cornering and on rough terrain.
This straight tow bar is engineered for long-lasting performance, providing secure and reliable towing connections across a wide range of vehicles and trailers.
Suitable for all vehicle models including cars, vans, and tractors. The four screw holes and 85 x 45 mm mounting base allow stable installation across different vehicle types.
Tow bar load capacity of 3,500 kg (3.5 tonnes) and trailer hitch load capacity of 1,500 kg (1.5 tonnes), covering heavy loads for caravans, yacht trailers, and cargo transport trailers.
Made from exceptionally strong and durable forged steel, offering high abrasion resistance and long service life.
Stainless steel surface finish with antioxidant coating provides exceptional corrosion resistance and rust prevention.
The 70.8 mm ball head and 28.5 mm axle diameter ensure maximum reliability in all towing conditions. The optimized position prevents interference with the rear bumper, maintaining safe clearance when cornering and on rough terrain.
Tapered adjustment screws on the fork head ensure a stable and secure installation, preserving the vehicle's appearance and structural integrity.
The straight tow bar with ball head serves a wide range of towing tasks for passenger vehicles and light commercial use.
Suitable for towing caravans and camper trailers with stable load handling.
Ideal for yacht trailers and boat transport requiring reliable coupling.
Handles cargo trailers and utility hauling with a 3.5-tonne tow bar capacity.
Universal fitment makes it suitable for cars, vans, and tractors, reducing the need for multiple towing setups.
Optimized ball joint position maintains safe clearance on uneven ground and during turns.
Parameter | Specification |
Type | Straight Tow Bar with Ball Head |
Ball Head Size | 70.8 mm |
Axle Diameter | 28.5 mm |
Length | 180 mm |
Mounting Base | 85 x 45 mm |
Screw Holes | 4 |
Tow Bar Load Capacity | 3,500 kg |
Trailer Hitch Load Capacity | 1,500 kg |
Material | Forged Steel |
Surface Finish | Stainless Steel with Antioxidant Coating |
Fitment | Universal (Cars, Vans, Tractors) |
Color | Red |
Q1: What vehicles does this tow bar fit?
A: This tow bar features a universal fitment suitable for cars, vans, and tractors. Please confirm your vehicle's mounting points and receiver specifications before ordering.
Q2: What is the towing capacity of this tow bar?
A: The tow bar has a load capacity of 3,500 kg (3.5 tonnes), while the trailer hitch has a load capacity of 1,500 kg (1.5 tonnes). Please verify the load rating of your complete towing setup before use.
Q3: What material is this tow bar made from?
A: It is made from forged steel with a stainless steel surface finish and antioxidant coating, offering high strength, abrasion resistance, and corrosion protection.
Q4: How does the ball joint position help during towing?
A: The optimized ball joint position prevents interference with the rear bumper, maintaining safe clearance when cornering and on rough terrain.
Q5: Is installation difficult?
A: The fork head features an 85 x 45 mm mounting base with tapered adjustment screws for stable and secure installation. Professional installation is recommended to ensure safety and proper fitment.
Q6: Can you provide OEM & ODM custom-made service?
A: Yes, custom dimensions, finishes, packaging, and private labeling are available based on your order quantity. Please contact our sales department with your detailed specifications.
Q7: What maintenance does this tow bar require?
A: Regular inspection of the surface finish, mounting screws, and ball head is recommended. Keep the tow bar clean and dry, and address any scratches or wear promptly to maintain corrosion resistance.
Q8: Does this tow bar come with mounting screws?
A: Yes, the product includes screws for installation. Please check the package contents upon receipt and contact our sales team if any parts are missing.
