Thinkwell
Zinc Plated, Rubber Coated
Box + Carton + Pallet
Customized Color
Off-road Recovery
| Quantity: | |
|---|---|

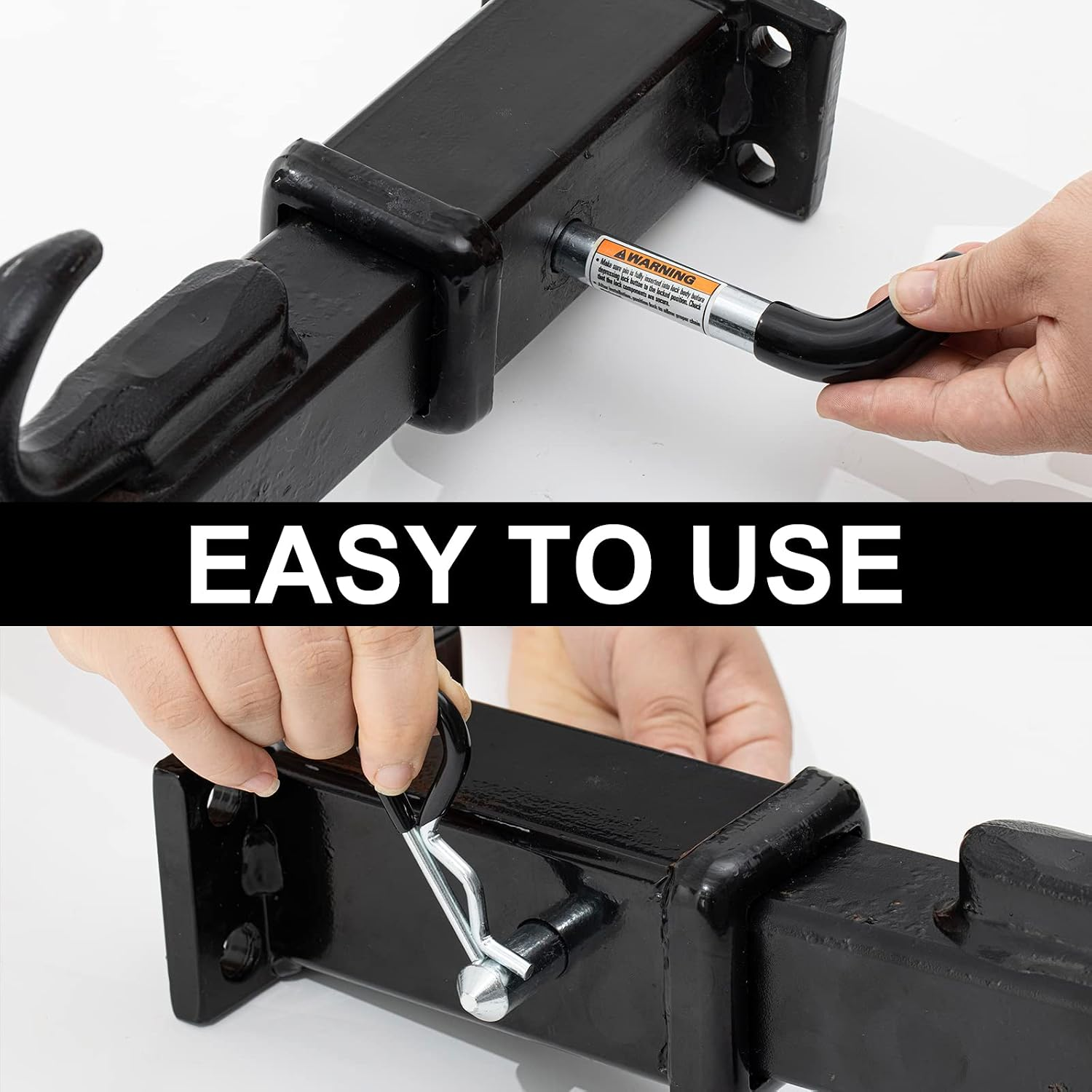

Thinkwell Heavy Duty Rubber Coated Trailer Hitch Pin with Clip upgrades the standard hitch pin design, combining zinc plated high strength carbon steel pin shaft with a thick rubber coated bent handle. This model is specially built for users who want better grip, scratch protection and quieter towing experience compared to fully bare zinc plated pins.
The steel pin shaft is zinc plated for rust and corrosion resistance against rain, mud and road salt. The ergonomic rubber coated curved handle delivers non slip grip for quick hand insertion and removal, no sharp metal edges to scratch your hands or vehicle paintwork. The rubber layer also helps dampen metal on metal vibration noise while driving. Every set is supplied with a matched safety clip to lock the pin securely and prevent accidental dislodging during off road driving or highway towing.
All dimensions comply with US industry standard for trailer hitch hardware. Multiple inch size options cover mainstream receiver tubes: 1/2 inch diameter for 1 1/4” receivers, 5/8 inch and 3/4 inch for 2 inch heavy duty receivers. Custom rubber coating color, laser marking and retail ready packaging are available for wholesale and e commerce resellers.
Solid high strength carbon steel pin shaft with zinc plating, excellent shear resistance, resists bending under normal towing loads; good anti rust performance for outdoor environments.
Thick durable rubber coating wraps the curved handle. Non slip comfortable grip for easy installation & removal; eliminates sharp metal edges to avoid scratching vehicle paint and operator hands; absorbs partial vibration to lower rattling noise during driving.
Each unit comes with matched spring steel safety clip. Firmly locks pin in receiver tube to avoid falling out caused by road vibration or off road bumps.
Multiple inch size options fit ball mounts, hitch accessories for pickup truck, SUV, ATV, UTV, utility trailers, boat trailers and campers. Fully compliant with US standard hitch receivers.
Support custom rubber grip colors, OEM laser engraved brand logo, blister pack, color box and other e commerce retail ready packaging solutions. Small batch trial orders are acceptable.
Batch material reports and tensile test reports can be provided; inline factory inspection & third party inspection are welcome. Backed by 12 month manufacturer warranty.
| Part Number | Pin Diameter (in) | Φ(in) | Effective Length L (in) | Suitable Receiver |
| TKTC 1021 001 RC | 1/2 | 1/2 | 3 | 1-1/4" Receiver |
| TKTC 1021 002 RC | 5/8 | 5/8 | 3-1/2 | 2" Receiver |
| TKTC 1021 003 RC | 5/8 | 5/8 | 4 | 2" Receiver |
| TKTC 1021 004 RC | 5/8 | 5/8 | 10-1/2 | 2" Receiver (extra long) |
| TKTC 1021 005 RC | 3/4 | 3/4 | 7-5/16 | Heavy duty 2" Receiver |
If you need quotation, MOQ, lead time or custom color / packaging solution, click “Inquire” button and send your requirements: include part numbers, quantity and packaging needs. Our sales team will reply you within 24 working hours.
