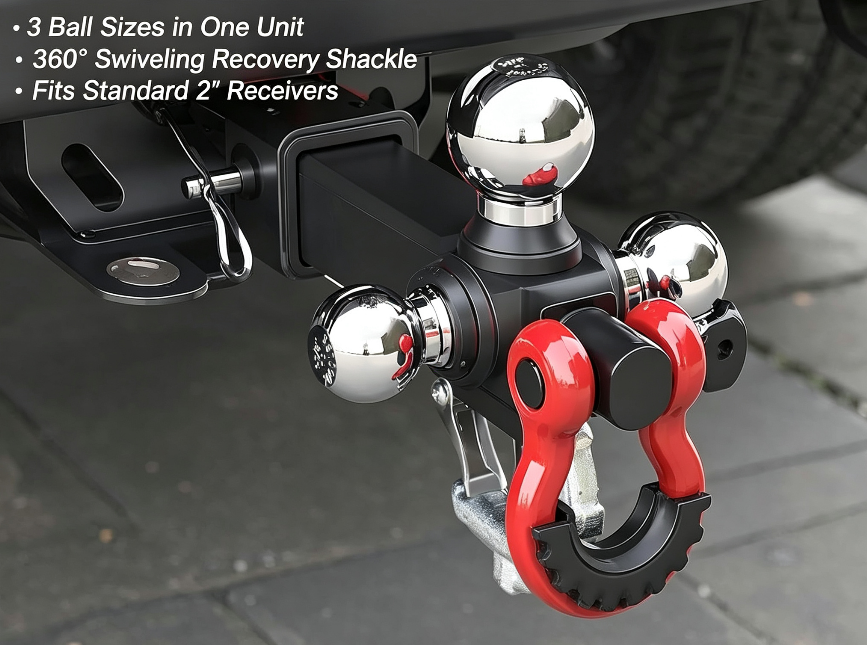

Built for trucks, SUVs, vans, and commercial trailers, the Tri-Ball Trailer Hitch Mount with 360° Swivel Tow Shackle is a heavy-duty multifunctional towing accessory engineered for 2-inch standard receiver hitches. It combines three common trailer ball sizes with a 360° swiveling tow shackle in one unit, allowing quick ball size changes without extra tools while providing strong recovery pulling capability.
This heavy-duty tri-ball mount is engineered for long-lasting performance, optimized to provide secure and reliable towing connections across multiple trailer types.
Permanently welded 1-7/8-inch, 2-inch, and 2-5/16-inch trailer balls. No need to purchase multiple mounts to fit different coupler sizes. Switching ball sizes only requires rotating the base.
Equipped with a 3/4-inch D-ring tow shackle that rotates 360° for flexible pulling angles. Ideal for tow straps and recovery straps, with a 10,000 lb pulling capacity.
1-7/8" ball rated at 2,000 lbs; 2" ball rated at 6,000 lbs; 2-5/16" ball rated at 10,000 lbs; tow shackle rated at 10,000 lbs. Covers light-duty to heavy-duty towing needs.
Black powder coat provides rust and corrosion protection, suitable for long-term outdoor and off-road use.
Comes with a 5/8-inch hitch lock to protect your investment and prevent theft.
7-1/2-inch usable length and 12-inch overall length. Square shank fits standard 2-inch receivers, compatible with Class III through Class V.
The multipurpose Tri-Ball Trailer Hitch Mount with 360° Swivel Tow Shackle serves a wide range of towing and recovery tasks for trucks, SUVs, and commercial vehicles.
Ideal for users with multiple trailers or frequently changing trailers. No need to swap mounts to fit different coupler sizes.
Suitable for RV trailers, equipment trailers, and livestock trailers requiring a 2-5/16" ball.
The 360° swivel shackle handles pulling and recovery on uneven terrain.
A practical solution for commercial fleets requiring quick trailer type changes.
Parameter | Specification |
Type | Tri-Ball with 360° Swivel Shackle |
Ball Sizes | 1-7/8" / 2" / 2-5/16" |
Ball Capacities | 2,000 / 6,000 / 10,000 lbs |
Shackle Size | 3/4" D-Ring |
Shackle Capacity | 10,000 lbs |
Shank Size | 2" |
Usable Length | 7-1/2" |
Overall Length | 12" |
Finish | Powder Coat |
Hitch Lock | 5/8" Included |
Q1: What is the main advantage of a tri-ball mount over a single-ball mount?
A: A tri-ball mount carries three trailer ball sizes (1-7/8", 2", and 2-5/16") in one unit. You can switch between ball sizes by rotating the base, without removing the mount or purchasing separate ball mounts. This is especially useful if you own multiple trailers with different coupler sizes.
Q2: Will this tri-ball mount fit my existing 2-inch receiver?
A: Yes, this mount features a standard 2-inch shank designed to fit all standard 2" x 2" receiver tubes. Please confirm your receiver size before ordering to ensure proper fitment.
Q3: What is the load capacity of each ball and the tow shackle?
A: 1-7/8" ball: 2,000 lbs; 2" ball: 6,000 lbs; 2-5/16" ball: 10,000 lbs; 360° swivel tow shackle: 10,000 lbs.
Q4: How does the 360° swivel tow shackle work?
A: The D-ring shackle rotates a full 360°, allowing the tow strap or recovery strap to align with the pulling direction. This reduces binding and improves safety during off-angle recovery.
Q5: Does this mount come with a hitch lock?
A: Yes, a 5/8-inch hitch lock is included to secure the mount in the receiver and prevent theft.
Q6: Can you provide OEM & ODM custom-made service for tri-ball mounts?
A: Yes, custom-printed logos, special surface finishes, modified mounting dimensions, and custom packaging are acceptable based on your order quantity. Please contact our sales department with your detailed custom specifications.
Q7: Is this mount suitable for off-road recovery?
A: Yes, the forged steel construction, powder coat finish, and 360° swivel tow shackle make this mount well-suited for off-road recovery and uneven terrain.
Q8: What is the difference between usable length and overall length?
A: Usable length refers to the distance from the hitch pin hole to the ball or shackle connection point, which determines clearance. Overall length includes the full shank that inserts into the receiver. This mount offers a 7-1/2-inch usable length and 12-inch overall length.
