Views: 953 Author: Thinkwell Publish Time: 2025-09-10 Origin: Snatch Block
stamping snatch block
stamping snatch block
forged snatch block
forged snatch block
Workmanship

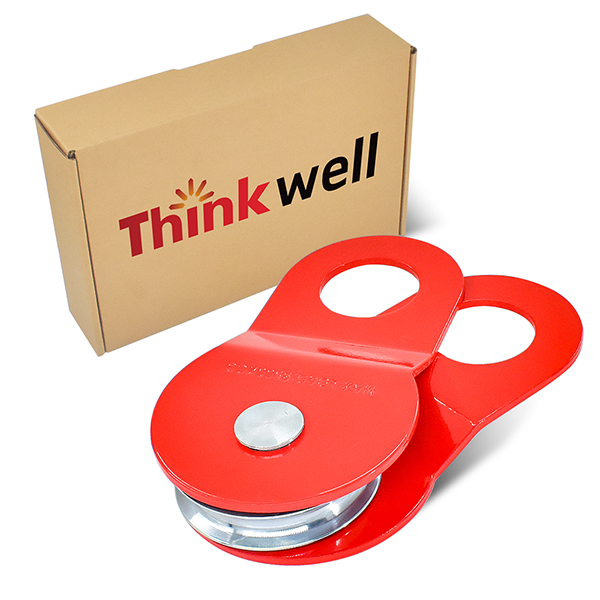

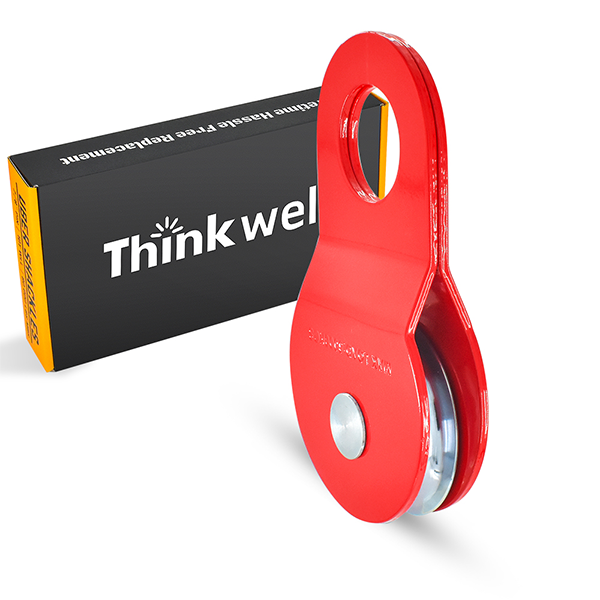

Stamping snatch block: The plate is stamped, and the snatch block shaft is machined by turning

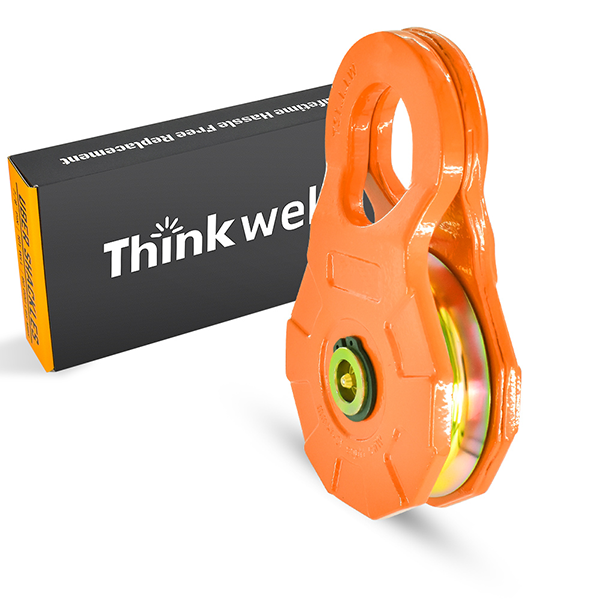

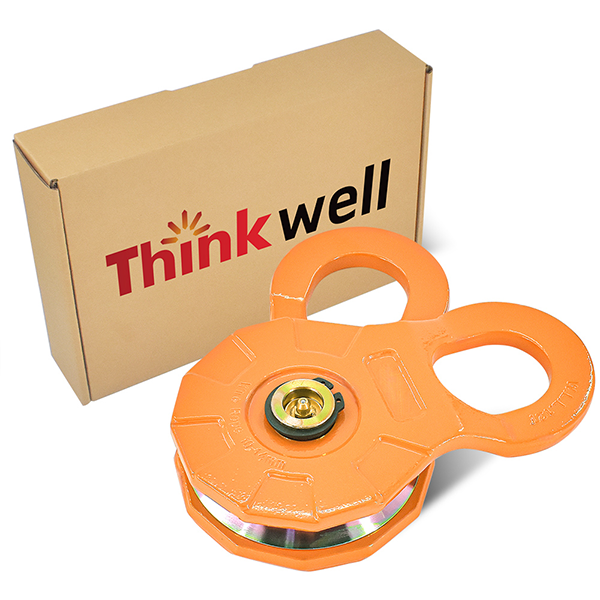

Forged snatch block: The plate is forged, and the snatch block shaft is machined.
Material
Stamping snatch block: plate Q235, shaft and wheel 45 # c
Forged snatch block: The plate, shaft, and wheel are all 45 # c
W.L.L.
Stamping snatch block: The working tension is 4T, 8T, 10T respectively
Forged snatch block: working tension 10T, breaking 25T or more
Suitable For Wire Rope Size
Stamping snatch block: 4T: 5-10mm; 8T：10-16mm； 10T：10-16mm
Forged snatch block: 10mm-14mm
Single Weight
Stamping snatch block: 4T: 1kg; 8T：2.6kg； 10T：3.4kg
Forged snatch block: 3.15kg
Surface Treatment
Stamping snatch block: The plate is sprayed with plastic, and the snatch block and shaft are electroplated with zinc
Forged snatch block: The plate is electroplated with zinc and sprayed with plastic, and the snatch block and shaft are electroplated with zinc
