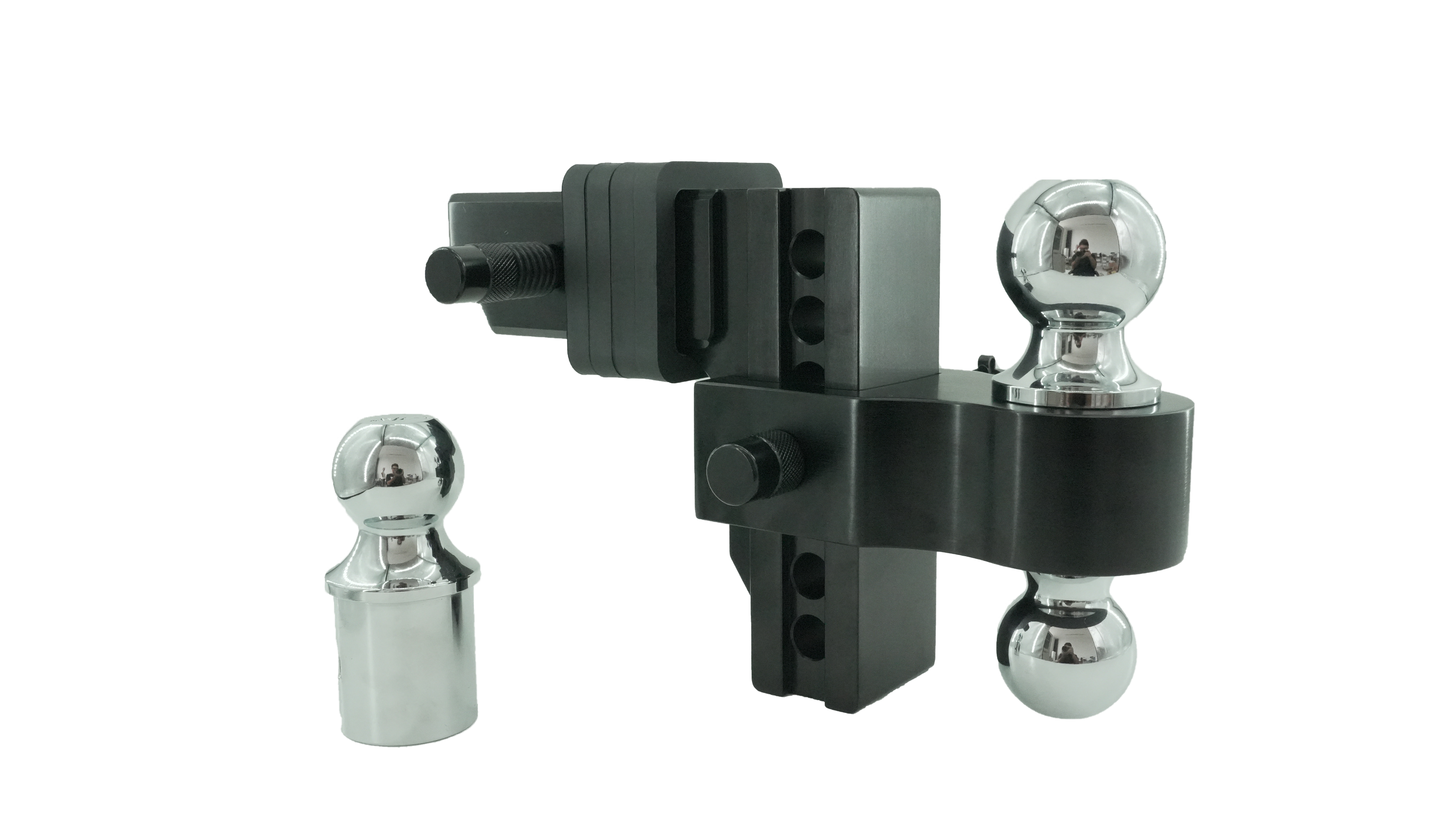

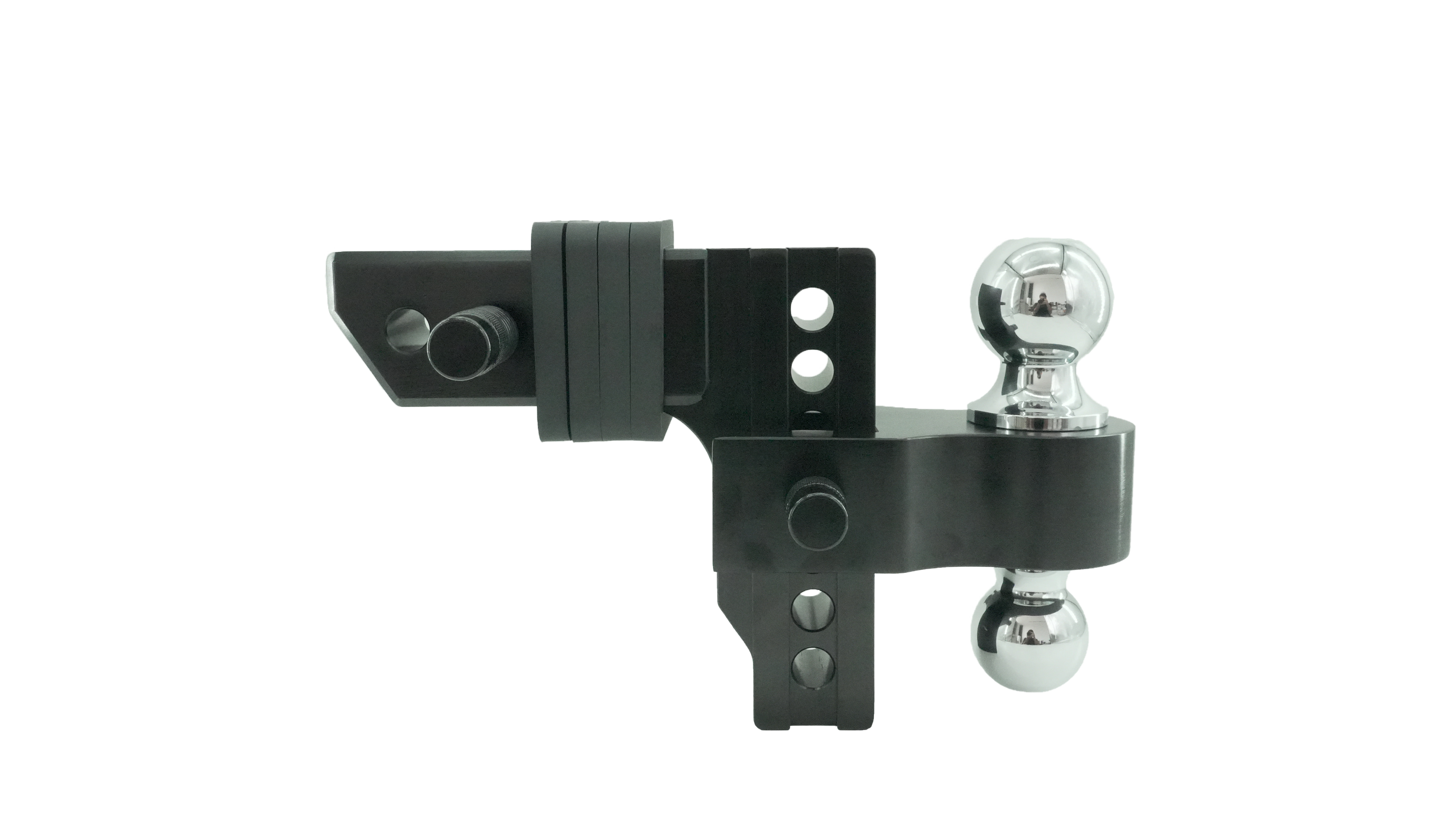

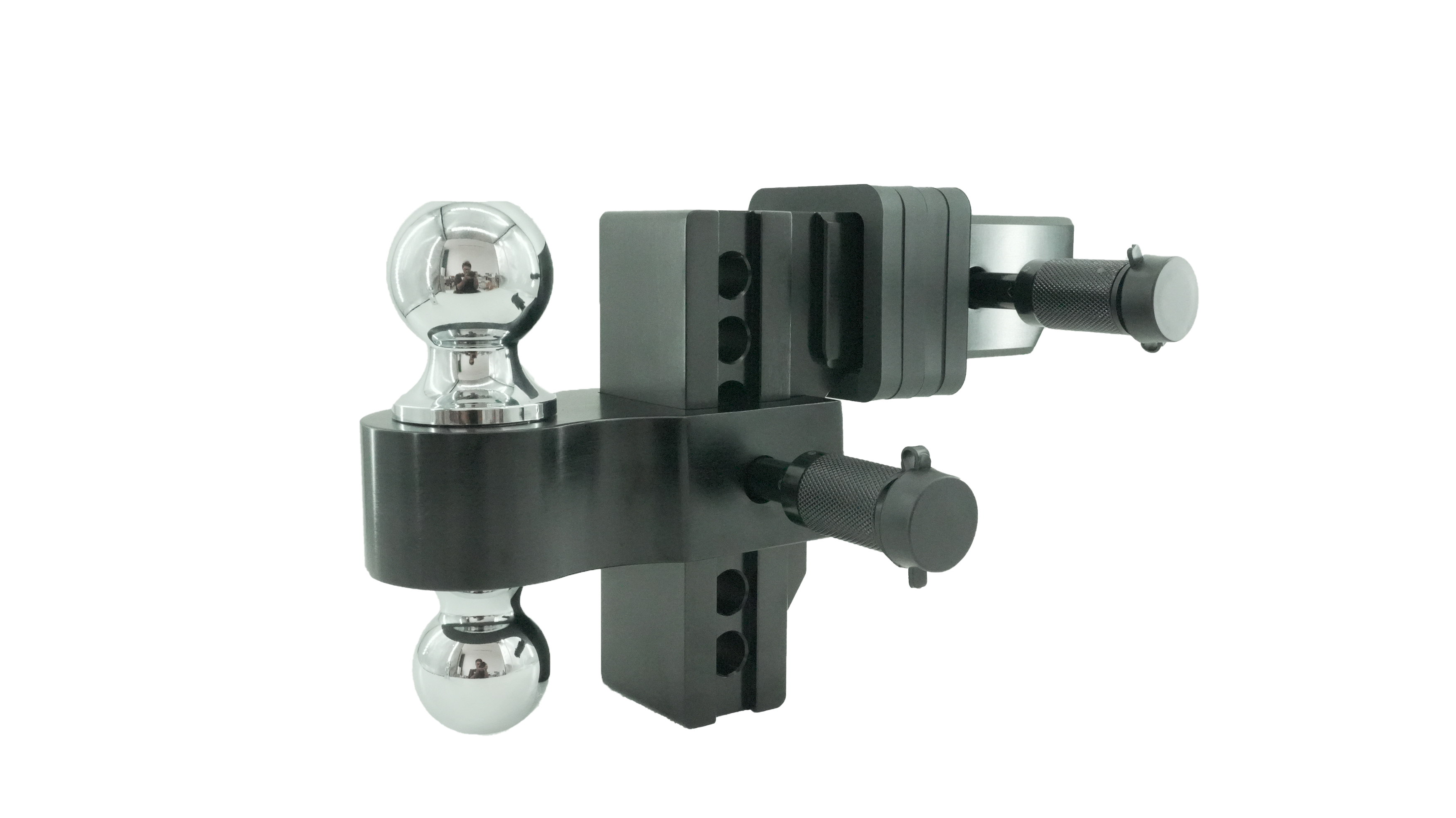

The adjustable hitch ball mount is a crucial load-bearing component connecting the tractor to the RV, yacht, or flatbed trailer. Among various trailer arm products, the aluminum adjustable hitch ball mount is becoming the preferred choice for an increasing number of users due to its lightweight, corrosion resistance, and flexible adaptability. This article delves into its structural advantages and proper usage.
The main body of the adjustable hitch ball mount is forged or processed from high-strength aluminum alloy profiles, and its surface undergoes anodizing treatment to form a dense protective film of aluminum oxide. This material characteristic brings several key advantages:
Significant weight reduction: The density of aluminum alloy is about one-third of that of steel. An aluminum alloy tow arm with a load capacity of 3.5 tons typically weighs 3 to 4 kilograms, while a carbon steel product of the same specification weighs 8 to 10 kilograms. The direct benefit of lightweight design is that it can be easily installed and dismantled by one person, making it particularly suitable for users who need to frequently switch towing equipment.
Natural corrosion resistance: The oxide film formed on the surface of aluminum material can effectively resist the erosion from rain, snow, salt spray, and humid environments. For users in coastal areas or off-road enthusiasts who frequently wade through water, this characteristic means a longer service life and lower maintenance costs.
Flexible and adjustable, with multiple uses for one arm: The multi-hole mechanical adjustment design allows for changing the height of the ball head by pulling out the positioning pin and moving the ball head seat up and down, with an adjustment range typically from 15 to 25 centimeters. The same trailer arm can be adapted to towing equipment with different ground clearances, avoiding potential safety hazards caused by "tilting" or "trailing".
Before each use, inspect the trailer arm for cracks, deformation, or severe wear, with a focus on the edges of the adjustment hole and the surface of the insertion end. Confirm that the square opening size matches, and that the ball head specification is consistent with the coupling of the towing equipment.
During installation, first clean the interior of the square opening of the trailer hitch on the rear of the tractor to remove any foreign objects and rust. Fully insert the trailer arm into the square opening, align the positioning hole, insert the high-strength positioning pin, and secure it with an R-shaped circlip or split pin. After insertion, shake firmly to confirm that there is no loosening.
Correctly adjusting the height of the ball head is crucial for safe towing. After measuring the height of the trailer hitch coupler above the ground, adjust the trailer arm according to this target. Loosen the height adjustment locking device, move the ball head seat up and down to the target position, re-insert the locking mechanism, and confirm that the ball head is secure.
The ideal state for towing is when the trailer equipment is basically kept horizontal, with the front slightly lower by 1 to 2 centimeters. If the ball head is too high, it will cause the trailer to tilt forward, reducing the traction of the rear wheels; if it is too low, the trailer will tilt backward, placing excessive burden on the front wheels and causing sluggish steering.
Reverse the vehicle so that the coupler is directly above the ball head, and slowly lower it until the ball head is fully inserted into the coupler. Press down on the coupler locking handle and confirm that it is locked in place by hearing a "click" sound. Insert the safety pin. Cross the two safety chains over the towbar of the tractor in an "X" shape to prevent the towbar from hitting the ground in case of unhooking. Connect the lighting harness and test all lighting functions.
Before starting, confirm that all connections are secure. When changing lanes while driving, reserve three times the space, apply brakes five times the distance ahead, and increase the radius when turning to avoid scraping the inner wheel. Stop every 1 to 2 hours to check the connection points, tires, and lights. When reversing, the direction is opposite to driving alone - if you want to tow to the left, turn the steering wheel to the right. It is recommended to practice in an open area first.
After each use, rinse with clean water to remove salt or sediment to prevent electrochemical corrosion. Check the adjustment mechanism for looseness and the positioning pin for wear. When not in use for a long time, clean and store it in a dry place. Aluminum alloy is less hard than steel, so avoid direct friction with steel shackles to prevent scratches.
The adjustable aluminum alloy trailer arm integrates portability, corrosion resistance, and flexibility, making towing preparation easy and quick. With one adjustment, it can be used for a long time, and one arm can fit multiple trailers - this is the convenience that modern trailer life deserves. Choose the right tool, and every connection will be effortless.
