Bow Shackle with Clamp Spring
ThinkWell
Forging
Powder Coating
Bubble Bag/Carton
Available In Multiple Colors
Applicable to Off-road Trailer Rescue
| Quantity: | |
|---|---|

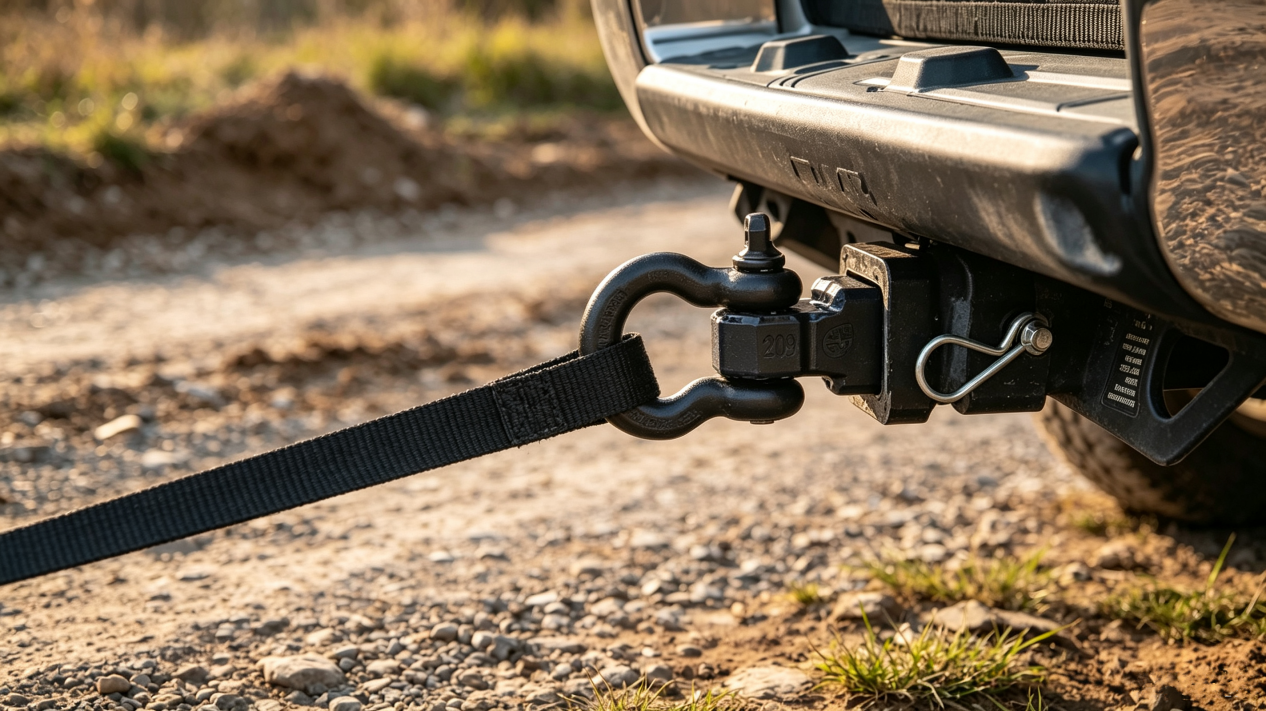

Designed for 4x4 offroad vehicle recovery, this G209 OffRoad Bow Shackle provides robust connection performance when vehicles become stuck in mud, sand, snow, or rough terrain. Made of heattreated dropforged carbon steel with alloy screw pin, the G209 Recovery Shackle handles dynamic pulling forces during vehicle extraction and is suitable for demanding offroad rescue situations. Its abrasionresistant and anticorrosion surface finishing supports reliable use in challenging outdoor environments. Designed for SUVs, trucks, 4x4 vehicles, and overlanding applications, this Off Road Tow Shackle is suitable for emergency extraction, trail rescue, and other vehicle recovery needs. Keep this practical G209 shackle as part of your essential offroad recovery gear for unexpected recovery situations.
Engineered for fullsize 4×4 vehicle recovery, this G209 Bow Shackle is built to handle vehicle weight and dynamic shock forces generated during extraction. Standard 3/4inch model delivers 4.75 Ton Working Load Limit with 28.5 Ton minimum breaking strength. Verified load and performance data can be provided based on actual product testing.
2.DropForged & HeatTreated Alloy Construction
The G209 Forged Shackle adopts onepiece dropforged 45# carbonsteel body paired with 40Cr alloysteel screw pin, quenched & tempered for balanced toughness and tensile strength. This forging process helps minimize risk of bending or fracture under heavy dynamic pull during offroad recovery operations.
3.Secure ScrewPin QuickConnect Design
Precisionthreaded screwpin design enables fast toolfree assembly and disassembly. The wide bow opening allows easy attachment to compatible tow hooks, recovery loops, kinetic recovery straps, and winch cables. This practical design makes the G209 Recovery Bow Shackle suitable for emergency extraction and trail recovery scenarios.
4.MultiOption CorrosionResistant Surface Finishing
Available with powdercoated, electrogalvanized or hotdip galvanized finishes. Antirust coating protects the shackle body against mud, rain, salt spray and harsh trail environments, extending service life for longterm offroad use. Multiple solid color options are available for fleet matching and visual identification on trail sites.
5.AllTerrain OffRoad Recovery Compatibility
Designed for demanding offroad recovery conditions, the G209 shackle is suitable for mud, sand, snow, gravel, and rocky trails. It can be used with SUVs, trucks, fullsize 4×4 vehicles, and overlanding vehicles as core connection hardware for complete offroad recovery kits.
6.Tested Performance You Can Verify
For greater product transparency, actual working load limit, breaking strength, hardness test, and corrosionresistance test results can be presented alongside the product specifications. Providing test methods and measurable results helps buyers evaluate the G209 Bow Shackle based on documented performance rather than unsupported claims.
Use a G209 Bow Shackle for vehicle recovery on beaches, desert dunes, and other sandy terrain. Its widebow flexible connection helps provide controlled pulling performance when an offroad vehicle becomes stuck in loose sand.
Mud Rescue
A G209 Recovery Shackle can provide a practical recovery solution for vehicles trapped in deep mud, muddy ruts, and bogs. The robust screwpin connection allows quick coupling to compatible recovery points and kinetic snatch straps.
Snow & Ice Recovery
The G209 OffRoad Shackle is suitable for vehicle extraction in snowy and icy environments. Its highstrength forged construction supports controlled recovery when traction is limited and additional pulling assistance is required.
Rocky Trail Recovery
For vehicles that become highcentered or stuck on uneven rocky trails, a G209 Forged Bow Shackle can be used with compatible recovery equipment to assist with controlled vehicle extraction.
Hill and Incline Recovery
The G209 Tow Shackle can help provide a secure connection when recovering vehicles on steep inclines. Its heavyduty forging design helps resist sudden dynamic shock during suitable recovery operations.
Convoy & Group Trail Support
For offroad groups, convoys, and fleet operations, G209 Bow Shackles provide a practical recovery connection option for assisting vehicles in different trail conditions. They can be kept as essential offroad recovery gear for unexpected extraction situations.
| Item | Size（in） | Working Load Limit（T） | Breaking Strength（lbs） | Color | Material |
TK0209-01 | 3/4 | 4.75 | 62800 | Gray，Black,Red,Orange,Blue,GreenEt | Forged45#CarbonSteelBody,40CrAlloySteelPin |
| TK0209-02 | 7/8 | 6.5 | 86000 | ||
| TK0209-03 | 1 | 8.5 | 112000 | ||
| TK0209-04 | 1-7/8 | 9.5 | 125000 | ||
| TK0209-05 | 1-1/4 | 12 | 158000 |
The G209 Bow Shackle body is made of dropforged 45# carbon steel, and the screw pin adopts highstrength 40Cr alloy steel with quenched & tempered heat treatment for offroad vehicle recovery applications. The specific construction and performance should be evaluated according to the product specifications and test data.
2. What vehicles can the G209 Bow Shackle be used for?
The G209 OffRoad Shackle is designed for offroad recovery applications involving SUVs, trucks, 4×4 vehicles, and overlanding vehicles. The appropriate shackle size should always be selected according to the vehicle weight, recovery equipment, and tested working load limit.
3. What colors and surface finishes are available for the G209 Shackle?
Standard color options include gray, black, red, orange, blue, and green. Available surface treatments include powder coating, electrogalvanizing and hotdip galvanizing. Custom colors can be discussed for specific orders.
4. Is the G209 Bow Shackle suitable for mud, sand, snow, and rocky trails?
Yes. The G209 Forged Bow Shackle can be used for a range of offroad recovery conditions, including mud, sand, snow, gravel, and rocky trails, when used with compatible recovery equipment and within the specified working load limits.
5. What is the difference between a G209 bow shackle and a Dshackle?
Conventional Dshackle performs best for straightline pulling, while the G209 bowshackle features wider bow space, allowing multiangle pulling and easier passing for thick snatchstrap loops, which is more widelyadopted for dynamic offroad vehicle recovery operations. The correct product should be selected based on the intended recovery method and product specifications.
6. Does the G209 shackle require special maintenance after offroad use?
Yes. After heavyduty muddy, sandy or saltwater environment use, clean shackle body and screw pin, remove grit and debris from threads, apply antirust lubricant for thread protection. Inspect for deformation, crack or thread damage before every recovery use.
7. Can the G209 Bow Shackle be customized?
Yes. Custom colors, laserengraved logos, packaging, and other product requirements can be discussed according to order quantity and production feasibility. Custom specifications should be confirmed with the supplier before production.
8. Can you support smallbatch G209 shackle orders?
Yes. ThinkWell provides flexible supply options for smallbatch and quickturnaround orders, subject to product availability, customization requirements, and production schedules.
9. Do you manufacture G209 shackles or provide trading services?
ThinkWell specializes in offroad rescue and towing accessories and provides product development, forging production, surfacetreatment processing, supply, and related services. Customers can contact the team to discuss product specifications, customization, packaging, and order requirements.
10. Do you export G209 bow shackles to international markets?
Yes. ThinkWell has experience supplying products to international markets, including North America, Europe, and Australia. The company also provides support from product selection and demand matching through order fulfillment and aftersales service.
