G-2130 Bow Shackle
ThinkWell
Forging
Powder Coating
Bubble Bag/Carton
Available In Multiple Colors
Applicable to Off-road Trailer Rescue
| Quantity: | |
|---|---|
This heavy duty G2130 forged anchor shackle features drop forged alloy steel construction with bolt, nut and split pin safety locking system for reliable multi directional load bearing performance. Designed for industrial rigging, overhead lifting, marine applications and heavy duty 4x4 vehicle recovery, it delivers stable, safe connection under tough working conditions with corrosion resistant finishing for long term outdoor service.
Designed for heavy load industrial rigging, overhead lifting, marine anchoring and 4x4 off road vehicle recovery, this G2130 Anchor Bow Shackle provides a secure multi angle connection solution. Made of heat treated drop forged carbon steel body paired with high strength alloy bolt, nut and safety split pin, the G2130 shackle effectively bears static and dynamic pulling forces for demanding lifting, towing and rescue operations. Its abrasion resistant and anti corrosion surface finishing supports dependable performance in harsh marine, construction and off road environments. Suitable for cranes, wire rope slings, chain assemblies, trucks, heavy duty SUVs and overlanding vehicles, this rigging shackle serves as core connection hardware for lifting jobs, marine mooring and emergency off road extraction. Keep this robust G2130 shackle as essential heavy duty rigging and recovery gear for high load working scenarios.
Engineered for heavy duty multi purpose use, this G2130 Bolt Type Anchor Shackle covers a broad working load range from 1/3 ton up to 150 ton, with minimum breaking strength at 6 times the rated working load limit. Every shackle is permanently marked with WLL and grade information for easy load identification. Verified load test reports and performance certificates can be provided upon request.
The G2130 Forged Shackle adopts one piece drop forged 45# carbon steel body matched with 40Cr alloy steel bolt. Both shackle body and bolt go through quenching and tempering heat treatment to achieve excellent balance of toughness and tensile strength. Premium forging technology greatly reduces risks of bending, stretching or fracture under heavy static or dynamic pulling force during lifting, rigging and off road recovery operations.
2. Bolt Nut Split Pin Safety Lock Design
Unlike regular screw pin shackles, the G2130 shackle comes with bolt, nut and split pin locking structure. This safety locking configuration prevents accidental unscrewing under vibration or side pull loads, making it ideal for long term fixed connections, overhead lifting, marine mooring and high risk recovery tasks. The wide bow opening allows easy attachment to wire ropes, chains, recovery loops, tow straps and winch cables.
3. Multi Option Corrosion Resistant Surface Finishing
Available finishes include hot dip galvanized, electro galvanized, dacromet treatment and powder coating. Anti rust protective layer shields the shackle body against seawater, salt spray, mud, rain and abrasive debris, greatly extending service life for marine, coastal, construction and long term outdoor off road use. Multiple solid color coating choices are offered for easy equipment identification and fleet wide color matching.
4. Multi Scenario Heavy Load Compatibility
Built for versatile heavy duty applications, the G2130 shackle performs reliably for overhead lifting, crane rigging, marine anchoring, trailer towing, construction site operations and all terrain off road vehicle recovery. It works perfectly with cranes, sling assemblies, heavy duty trucks, full size pickup trucks and large 4×4 vehicles as core connection hardware for complete industrial rigging and heavy load recovery kits.
5. Tested Performance You Can Verify
To ensure product transparency for bulk industrial buyers, we can supply test records covering working load limit, breaking strength, metal hardness and corrosion resistance. All performance data is based on real lab testing so customers can evaluate the G2130 Anchor Bow Shackle by factual results instead of unsubstantiated marketing claims.

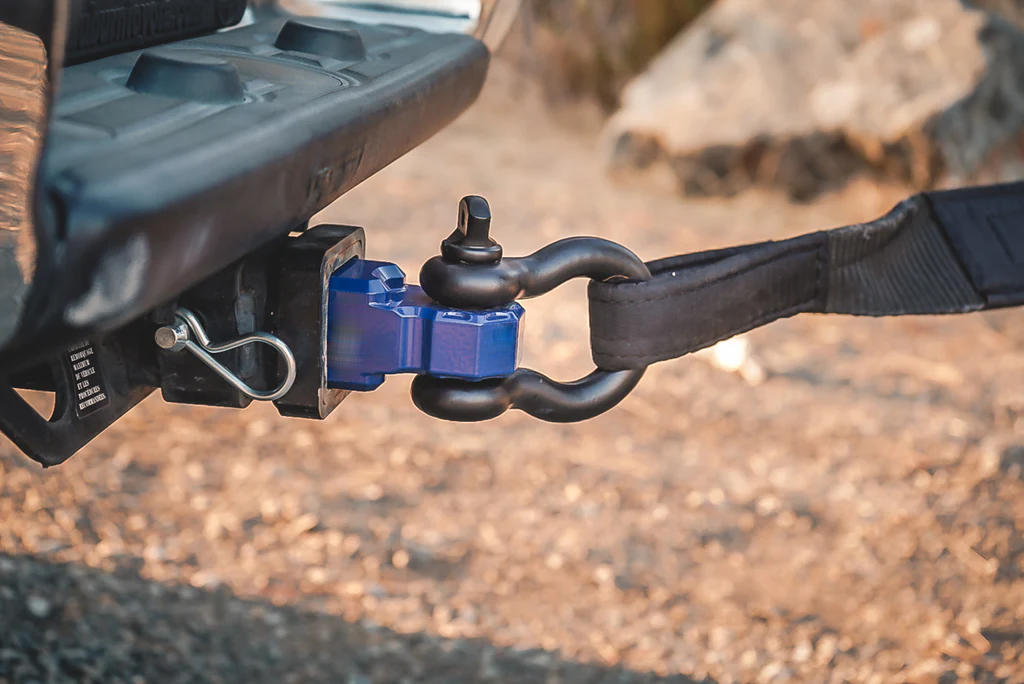

Use a G2130 Anchor Shackle for heavy vehicle recovery when large trucks or 4x4 rigs become stuck in mud, sand, snow or rocky trails. Its safety lock bolt structure delivers stable pulling connection for long duration high load rescue work.
Over Head Lifting & Crane Rigging
The G2130 Shackle is well suited for overhead lifting jobs, connecting wire rope slings, chain slings and lifting hooks on construction sites, factories and cargo handling yards.
Marine & Mooring Operations
Hot dip galvanized G2130 shackles provide excellent salt spray resistance for boat anchoring, dock mooring and marine rigging in coastal and offshore environments.
Trailer & Heavy Cargo Towing
A G2130 Anchor Shackle offers a secure long term connection point for heavy duty trailers, farm equipment and large cargo towing where vibration resistant locking is required.
Construction & Heavy Equipment Handling
For construction site material hoisting and heavy equipment moving, the G2130 shackle serves as dependable rigging hardware for high load connection points.
Convoy & Industrial Fleet Support
For large off road groups, work truck fleets and industrial equipment teams, G2130 Anchor Shackles serve as dependable heavy load hardware for lifting, towing and recovery tasks across all harsh working environments.
| Item | Size（in） | W.L.L（T） | Safety Factor | Color | Material |
| TK213001 | 3/4 | 4.75 | 6:1 | ilver Galvanized, Black, Red, Orange, Blue, | Forged 45# Carbon Steel Body,40Cr Alloy Steel Bolt Nut Split Pin |
| TK213002 | 7/8 | 6.5 | |||
| TK213003 | 1 | 8.5 | |||
| TK213004 | 1&1/8 | 9.5 | |||
| TK213005 | 1&1/4 | 12 |
The G2130 shackle body is made of drop forged 45# carbon steel, and the bolt, nut and split pin adopt high strength 40Cr alloy steel with quenched & tempered heat treatment for heavy load lifting, rigging and off road recovery applications. The specific construction and performance should be evaluated according to the product specifications and test data.
2. What applications can the G2130 Anchor Shackle be used for?
The G2130 shackle is designed for multi purpose heavy duty scenarios, including overhead crane lifting, industrial rigging, marine mooring, heavy cargo towing, construction material handling and heavy load 4×4 off road vehicle recovery. The shackle size should always be selected according to actual load weight and tested working load limit.
3. What colors and surface finishes are available for the G2130 Shackle?
Standard options include hot dip galvanized silver, electro galvanized, dacromet and powder coated colors such as black, red, orange, blue, and green. Custom colors can be discussed for specific bulk orders.
4. Is the G2130 shackle suitable for marine salt water environments?
Yes. Hot dip galvanized G2130 anchor shackles deliver strong anti corrosion performance and are widely used for marine mooring and coastal operations. Regular inspection and maintenance are still required after long time salt water exposure.
5. What is the difference between G2130 bolt type anchor shackle and regular screw pin bow shackle?
Regular screw pin shackles are suited for fast connect temporary recovery jobs, while the G2130 bolt nut split pin shackle adds a safety locking mechanism that prevents loosening caused by vibration and side pulling. It is preferred for overhead lifting, long term fixed connections and marine use. The correct shackle type should be selected based on your working scenarios.
6. Does the G2130 shackle require special maintenance after heavy duty use?
Yes. After use in marine, muddy, sandy or salt water environments, clean shackle body, bolt, nut and split pin, remove grit and debris from threads, apply anti rust lubricant for thread protection. Inspect for deformation, crack or thread damage before every lifting or recovery use.
7. Can the G2130 Anchor Shackle be customized?
Yes. Custom colors, laser engraved logos, packaging, and other product requirements can be discussed according to order quantity and production feasibility. Custom specifications should be confirmed with the supplier before production.
8. Can you support small batch G2130 shackle orders?
Yes. ThinkWell provides flexible supply options for small batch and quick turnaround orders, subject to product availability, customization requirements, and production schedules.
9. Do you manufacture G2130 shackles or provide trading services?
ThinkWell specializes in rigging, lifting and off road rescue accessories and provides product development, forging production, surface treatment processing, supply, and related services. Customers can contact the team to discuss product specifications, customization, packaging, and order requirements.
10. Do you export G2130 anchor shackles to international markets?
Yes. ThinkWell has experience supplying products to international markets, including North America, Europe, and Australia. The company also provides support from product selection and demand matching through order fulfillment and after sales service.
