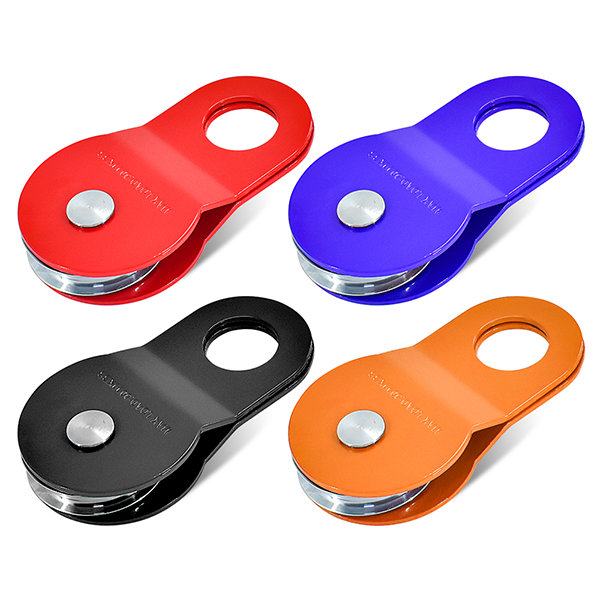

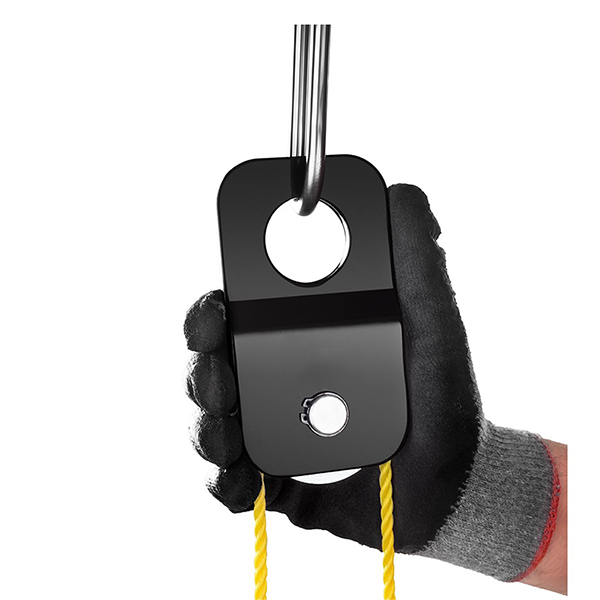

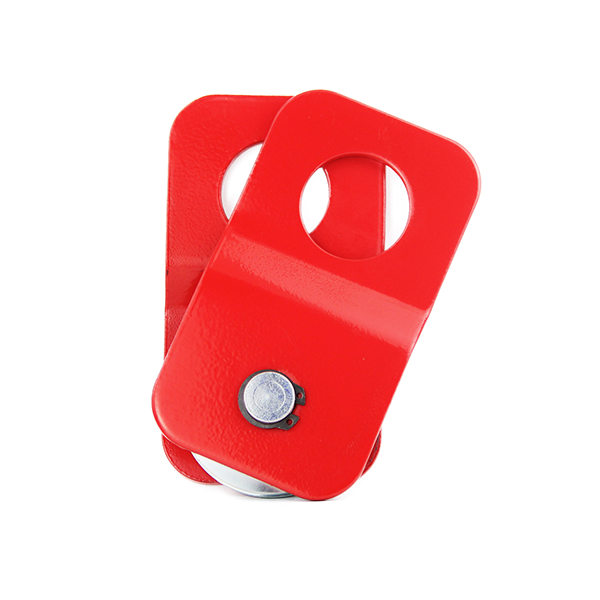

Snatch Block
Snatch Block
Snatch Block
Snatch Block
Production process——the board is stamped, and the pulley shaft is machined by turning
The snatch block components are mainly manufactured using two mature processes, stamping and machining, which balance production efficiency, cost control, and product reliability. We have achieved mass production, high-quality, and cost-effective manufacturing of snatch block.
Material——Q235 board, 45 # C shaft and wheel
Q235 is a common carbon structural steel with good plasticity, toughness, and certain strength. It is easy to stamping and cost-effective. 45 # steel is a high-quality carbon structural steel that can achieve high strength, hardness, and wear resistance after heat treatment (quenching+tempering), making it very suitable for key components that can withstand friction and heavy loads.
Working tension——4 tons, 8 tons, 10 tons
We offer three mainstream working tension levels of 4 tons, 8 tons, and 10 tons to meet the strong demands of different users. All products undergo strict inspection and testing before leaving the factory to ensure that their performance indicators fully meet or even exceed the indicated working tension requirements, providing users with a safe and reliable force transmission solution.
Weight——4 tons: 1kg; 8 tons: 2.6kg; 10 tons: 3.4kg
One of the key goals of engineering design is to achieve lightweighting of components while ensuring absolute safety. Our snatch block series achieves the best balance between strong load-bearing capacity and convenient mobility through optimized structure and selected materials.
Surface treatment——the board is sprayed with plastic, and the pulley and shaft are electroplated with zinc
To meet the anti rust and wear-resistant requirements of snatch block in outdoor and various harsh environments, this product adopts differentiated surface treatment schemes based on the functional characteristics of different components to achieve the best protection effect and longer service life.
If you also like this snatch block, please click below to contact us. Our sales manager will communicate with you in detail
