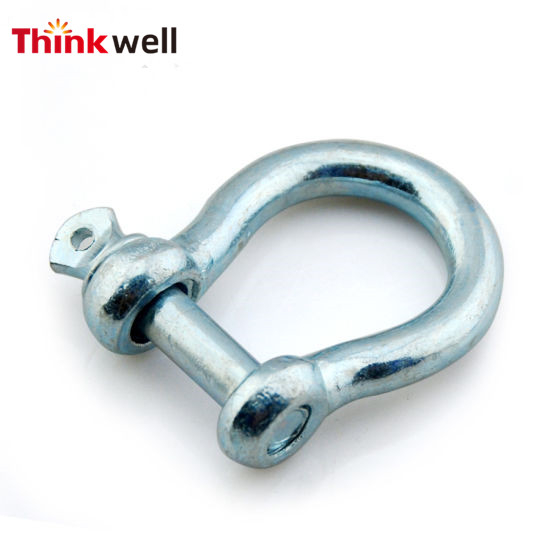

Thinkwell Forged Galvanized European Type Bow Shackle

★ Heavy Duty: forged carbon steel
★ Zinc plated
★ Warranty - 12 months
★ ISO certified
★Free sample
  • European Bow Shackle
  • Thinkwell
Quantity:

Product Description

Thinkwell Forged  Galvanized  European Type  Bow  Shackle


The terms Anchor shackles and bow shackles are usually used interchangeably, as both names refer to a shackle with a larger, rounded “O” shape look. However, a bow shackle typically has a larger, more defined “bow” area than an anchor shackle. The rounded design of anchor shackles and bow shackles allow them to take loads from many directions without developing significant side load. The larger loop shape of an anchor shackle or bow shackle does reduce its overall strength, but it is also able to handle a larger strap.


Basic Information :

European Type  Bow  Shackle

Materials: forged carbon steel

Size:5mm to 50 mm(Other sizes can be customized)

Finish: zinc galvanized


Quality Control :

 ●Material test report for Each Batch.

●Tensile Test for Each Batch.

●Inline inspection.

●Welcome 3rd party inspection or test.


Thinkwell Advantages :

 ●Provide OEM/ODM service.

●Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty.

●Strict quality control based on ISO9001 and 12 months warranty.

●A/S within 24 months.

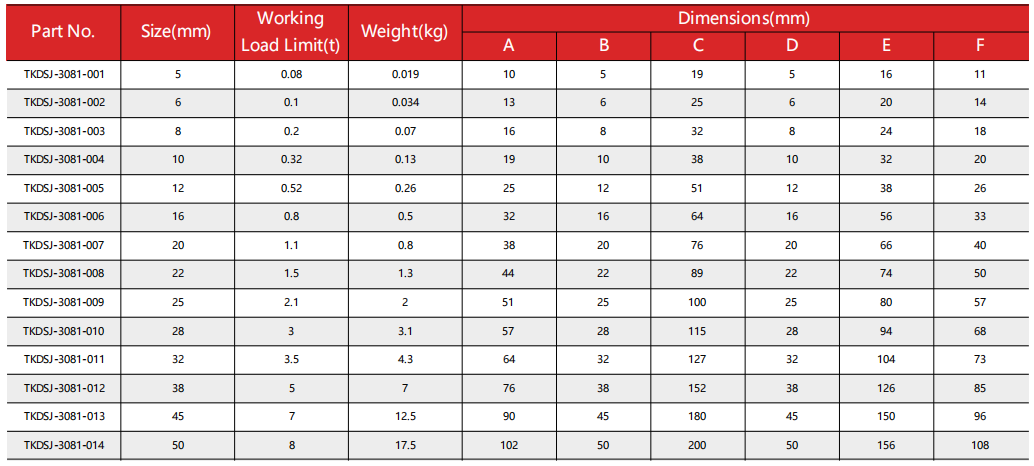

 More products detailed specification,please download catalog for reference.

shackle -new.pdf
