G2150 US Type Bolt Type Chain Shackle
Thinkwell
| Quantity: | |
|---|---|

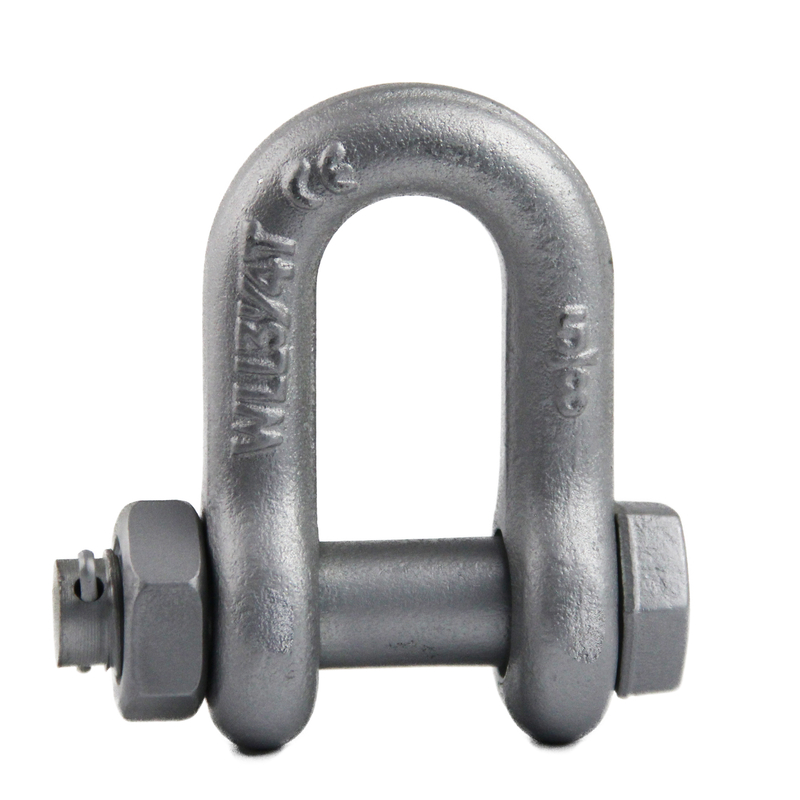

Thinkwell G2150 US Type Bolt Type Chain Shackle
Chain shackles are also known as D-shackles, d shackles, or “dee shackles.” Both refer to the “D” shape design. A d-shackle is narrower than a bow or anchor shackle and generally have a threaded pin or pin close. The smaller loop is designed to take high loads primarily in line. Side and racking loads may twist or bend a D or chain shackle.
Basic Information :
G2150 Bolt Type Chain Shackle
Materials: carbon steel body and alloy steel shackle pin
Size:1/4" to 3".(other sizes can be customized)
Finish: zinc galvanized/hot dip galvanized/powder coating
Breaking strength: 4 times W.L.L and 6 times W.L.L available according to requirement.
Quality Control :
●Material test report for each batch.
●Tensile test for each batch.
●Inline inspection.
●Welcome 3rd party inspection or test.
Thinkwell Advantages :
●Provide OEM/ODM service.
●Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty.
●Strict quality control based on ISO9001 and 12 months warranty.
●A/S within 24 months.

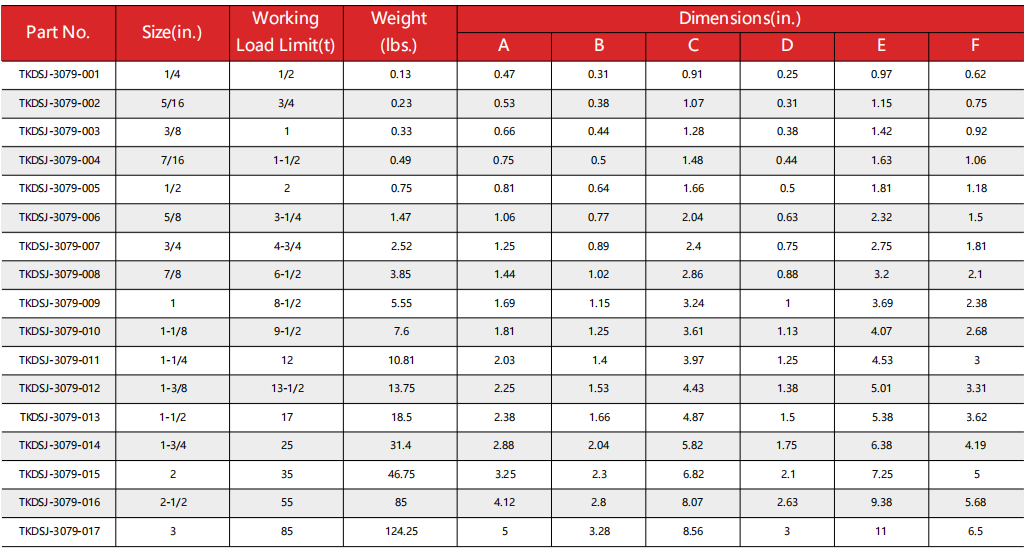

More products detailed specification,please download catalog for reference.
