What Are the Features of Ratchet Type Load Binder?

Views: 0     Author: Site Editor     Publish Time: 2022-12-21      Origin: Site

The ratchet type load binder is used for tensioning conductors in overhead line laying works. When using, first loosen the wire rope or galvanized iron wire on the wire tensioner, and fix it on the cross arm, clamp the wire with the wire clamp, and then pull the special wrench.


  • What are the features of ratchet type load binder?

  • What is the structure and application of ratchet type load binder?

  • How does the ratchet type load binder work?


What are the features of ratchet type load binder?


HR type ratchet type load binder with spring design, anti-vibration and shaking during use, good stability;


HR type ratchet type load binder with welding ring and 80 grade eye hook, safe and anti-drop;


The ratchet type load binder strengthens the endurance design of each component, does not fall off after locking, is safe, reliable, lightweight and convenient;


The HR ratchet type load binder has undergone endurance tests for each drawbar and is durable;


The HR type ratchet type load binder protects the surface of objects from damage when used.


What is the structure and application of ratchet type load binder?

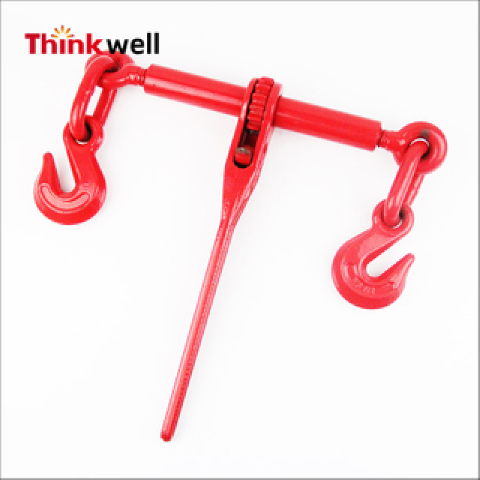

Ratchet Type Load Binder


Ratchet type load binder consists of handle, pawl, ratchet, left fork, left screw with external thread, right fork, right screw with external thread and sleeve with internal thread; The left and right splints are fixed on both sides of the pawl and the ratchet, the ratchet is fixed above the handle, the pawl is fixed between the lower part of the ratchet and the handle, the left fork is fixed with the left screw rod, and the right fork is fixed with the right screw rod.


For connection, a sleeve is sleeved around the left screw rod and the right screw rod, and the left screw rod and the right screw rod are threadedly connected with the sleeve; The use of this fastener saves time and effort, is reliable in fastening, and is easy to use. It is very suitable for fastening the door of a large box such as a garbage can and lifting a certain weight of goods.


How does the ratchet type load binder work?


When using the ratchet type load binder, first loosen the wire rope or galvanized iron wire on the wire tensioner, fix it on the cross arm, clamp the wire with the wire clamp, and then pull the special wrench. Due to the anti-reversal effect of the pawl, the wire rope or galvanized iron wire is gradually wound around the ratchet drum to tighten the wire. Fasten the tightened wire to the insulator. Then release the pawl first to loosen the wire rope or galvanized iron wire, then loosen the wire clamp, and finally wind the wire rope or galvanized iron wire around the drum of the ratchet.
