DIN 741 Wire Rope Clip is a classic European standard malleable iron cable clamp, manufactured strictly according to German industrial DIN 741 standard. It consists of a malleable iron saddle, carbon steel U-bolt and matched nuts, serving as a basic and reliable fastener for wire rope fixing and looping.
Different from heavy-duty forged clips and American standard clips, DIN741 clip adopts metric sizing and high-toughness malleable iron structure, featuring lightweight body, stable clamping performance and high cost performance. It is widely used for general industrial rope fixing, temporary rigging connection, guardline tensioning and daily mechanical cable locking, being the most popular standard clip for European civilian and conventional engineering projects.
18 Years Professional Production Experience: We specialize in the production of DIN standard rigging clips, with mature malleable iron casting and assembly technology, precise metric size control and long-term European export experience.
Fully compliant with German DIN 741 industrial standard, unified metric dimension system, perfectly matching European standard steel wire ropes, suitable for EU market export and engineering supporting.
Adopts heat-treated malleable iron material, with excellent bending resistance and impact toughness, effectively avoiding brittle fracture of ordinary cast clips under normal load.
Optimized saddle radian fits the wire rope closely, disperses clamping force evenly, prevents rope extrusion damage and slipping, and ensures stable connection.
Equipped with high-strength carbon steel U-bolt and precision thread nuts, smooth tightening, good fastening consistency and strong overall coordination.
Standard electro-galvanized finish with uniform zinc layer, effectively resisting daily oxidation and rust; optional hot-dip galvanized for outdoor and humid environment use.
Integrated assembled structure, light weight and simple operation, no complex tools required, greatly improving on-site construction efficiency.
Designed for general conventional working conditions, balanced performance and cost, ideal for large-scale daily rigging layout and fixed installation.
Full metric specifications from 3mm to 40mm, covering all common European standard wire rope diameters for diverse application scenarios.
Focus on DIN standard European rigging accessories production for 18 years, with independent casting, finishing and assembly production lines.
All products are calibrated with DIN741 standard dimensions, with strict appearance, thread and clamping performance sampling test to ensure zero defective delivery.
Support custom surface treatment, laser logo marking, special size processing and exclusive packaging to meet European market differentiated demands.
All conventional metric sizes are in stock, supporting bulk wholesale, mixed batch delivery and urgent order fast shipment.
No middleman markup, stable batch quality and competitive price, providing cost-effective rigging solutions for global distributors.
Provide accurate metric size selection guidance and standard installation suggestions to help customers standardize rigging construction.

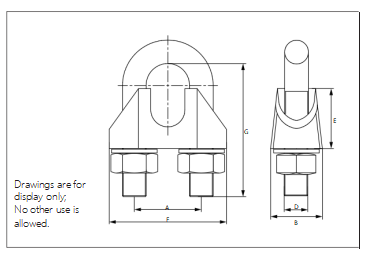

Part No | Spec (mm) | Weight (kg) | Measure(mm) | |||||
A | B | D | E | F | G | |||
TKDSJ-2018 -01 | 3 | 0.014 | 9 | 10 | 4 | 10 | 21 | 16 |
TKDSJ-2018 -02 | 5 | 0.015 | 11 | 11 | 5 | 10 | 23 | 19 |
TKDSJ-2018 -03 | 6.5 | 0.021 | 13 | 12 | 5 | 11 | 26 | 23 |
TKDSJ-2018 -04 | 8 | 0.041 | 16 | 14 | 6 | 15 | 30 | 26 |
TKDSJ-2018 -05 | 10 | 0.068 | 19 | 18 | 8 | 17 | 34 | 34 |
TKDSJ-2018 -06 | 11 | 0.072 | 20 | 19 | 8 | 18 | 36 | 36 |
TKDSJ-2018 -07 | 13 | 0.12 | 24 | 23 | 10 | 21 | 42 | 45 |
TKDSJ-2018 -08 | 14 | 0.135 | 25 | 23 | 10 | 22 | 44 | 47 |
TKDSJ-2018 -09 | 16 | 0.21 | 29 | 26 | 12 | 26 | 50 | 51 |
TKDSJ-2018 -10 | 19 | 0.28 | 32 | 29 | 12 | 30 | 54 | 63 |
TKDSJ-2018 -11 | 22 | 0.4 | 37 | 33 | 14 | 34 | 61 | 71 |
TKDSJ-2018 -12 | 26 | 0.44 | 41 | 35 | 14 | 37 | 65 | 81 |
TKDSJ-2018 -13 | 30 | 0.66 | 48 | 37 | 16 | 43 | 74 | 94 |
TKDSJ-2018 -14 | 34 | 0.85 | 52 | 42 | 16 | 50 | 80 | 104 |
TKDSJ-2018 -15 | 40 | 1.04 | 58 | 45 | 16 | 55 | 88 | 124 |
DIN 741 wire rope clip is a standard European metric rigging fastener, specially used for wire rope fixing, loop forming and tail locking. It is widely applied in general industrial equipment, building guardrails, temporary rigging and daily mechanical tensioning projects in European markets.
DIN741 clip adopts German metric standard and malleable iron material, focusing on lightweight and economical general engineering scenarios. American standard clips use inch sizing, with higher load design, more suitable for heavy-duty industrial and marine professional rigging projects.
Yes. The product adopts heat-treated malleable iron with enhanced toughness, which is not easy to crack or deform under normal working load. With galvanized anti-corrosion treatment, it has long service life for indoor and outdoor conventional use.
Absolutely. All our DIN741 wire rope clips are strictly produced and inspected according to German DIN741 industrial standards, with standard metric sizes, fully meeting European market access and conventional engineering matching requirements.
Yes. The standard thread assembly structure supports repeated disassembly and reinstallation. It is recommended to check saddle deformation and thread abrasion before reuse to ensure connection safety.
We provide electro-galvanized for daily anti-rust and cost-effective use, and hot-dip galvanized for enhanced corrosion resistance, adapting to outdoor, humid and mild salt-spray working environments.
Yes. We support custom special metric sizes, surface treatment processes, laser logo printing and personalized packaging, providing one-stop export customization services for European customers.
All conventional metric sizes are in stock for fast delivery. Customized products can be completed within 3-7 working days. With 18 years of production experience, we support long-term stable bulk supply for European market.
