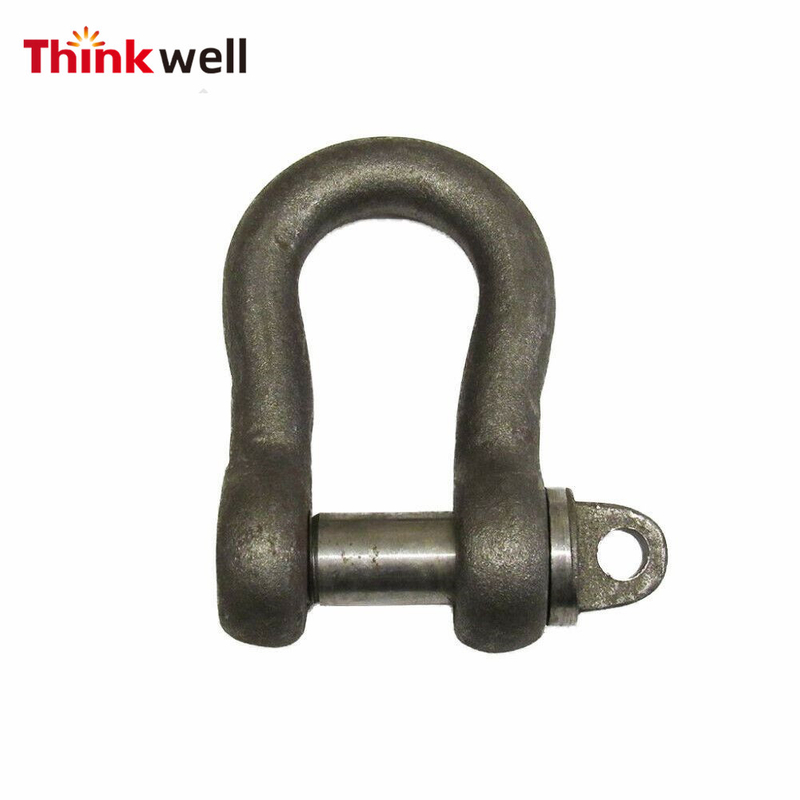

Forged Galvanized BS 3032 Large Dee Shackle

Forged  Galvanized  BS 3032 Large Dee Shackle

Chain shackles are also known as D-shackles, d shackles, or “dee shackles.” Both refer to the “D” shape design. A d-shackle is narrower than a bow or anchor shackle and generally have a threaded pin or pin close. The smaller loop is designed to take high loads primarily in line. Side and racking loads may twist or bend a D or chain shackle.

Basic Information :

Forged  Galvanized  BS 3032 Large Dee Shackle

Materials: carbon steel

Finish: Zinc Galvanized,Polished

Quality Control :

 ●Material test report for each batch.

●Tensile test for each batch.

●Inline inspection.

●Welcome 3rd party inspection or test.

Thinkwell Advantages :

 ●Provide OEM/ODM service.

●Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty.

●Strict Quality control based on ISO9001 and 12 months warranty.

●A/S within 24 months.

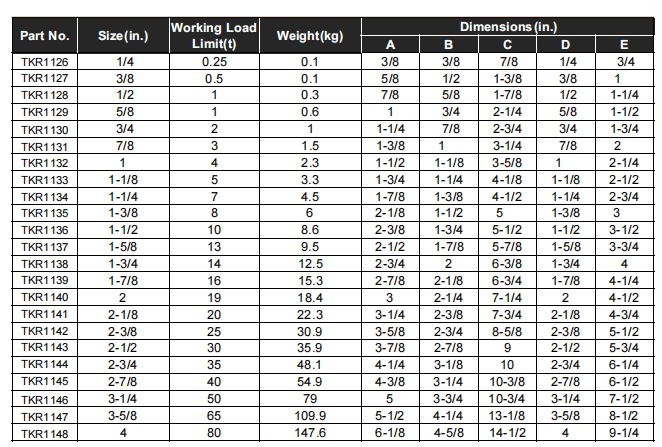

More detailed specification,please download catalog for reference.

shackle -new.pdf
