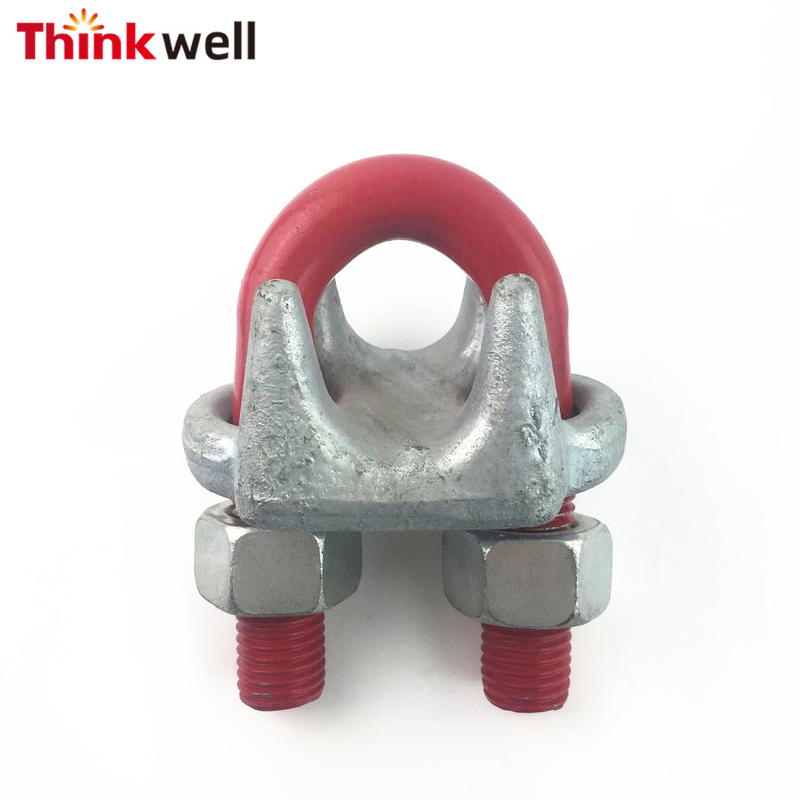

G450 US Type Wire Rope Clip is a heavy-duty American standard wire rope fastening hardware, also known as G450 forged cable clamp, U-bolt rope clip and wire rope retainer. It is designed to clamp the dead end of a wire rope to form a secure loop or termination, and is widely used in industrial rigging, marine mooring, construction, mining, transportation and heavy equipment connections.
The G450 clip adopts a heavy U-bolt, forged body and safety bolted end structure. It provides reliable holding force under tension, vibration and dynamic load, making it suitable for permanent installations and long-term temporary rope fastening. It is a common choice for standard wire rope end connections where strength, durability and easy inspection are required.
18 Years Professional Production Experience: We specialize in the production of US standard wire rope clips and heavy-duty rigging hardware, with mature drop forging technology, strict dimension control and rich export experience.
G450 follows American standard practice for wire rope clips, with unified dimensions and stable performance suitable for industrial and export applications.
The main body is made of high-quality carbon steel by integral drop forging, providing higher strength, impact resistance and durability than cast or low-grade clips.
The U-bolt transfers clamping force evenly to the wire rope, helping to reduce slippage and maintain a secure connection under sustained tension.
Equipped with bolt and nut fastening parts, the G450 clip forms a reliable mechanical lock after tightening, suitable for long-term service and heavy-load conditions.
Properly installed G450 clips provide strong rope retention, making them suitable for wire rope end loops, dead-end connections and rigging assemblies.
Standard electro-galvanized or hot-dip galvanized finish provides effective rust protection for outdoor, industrial and marine-related environments.
Available in sizes from 1/4 inch to 1 1/2 inch, matching a wide range of common wire rope diameters used in industrial rigging.
Ideal for wire rope termination, mooring lines, crane rigging, construction cables, mining equipment, transportation securing and heavy industry connections.
We have specialized in US standard wire rope clips and rigging hardware for 18 years, with stable production processes and consistent product quality.
Each batch goes through dimensional inspection, hardness control and load-related testing to ensure reliable performance before delivery.
Support custom sizes, materials, surface treatments, marking and packaging according to customer requirements.
Regular G450 sizes are kept in stock to support bulk orders, urgent requirements and long-term supply agreements.
Direct manufacturing with no extra middleman markup, providing cost-effective solutions for wholesale and industrial projects.
Provide product selection guidance, installation recommendations and after-sales support to help customers choose the right clip for their application.

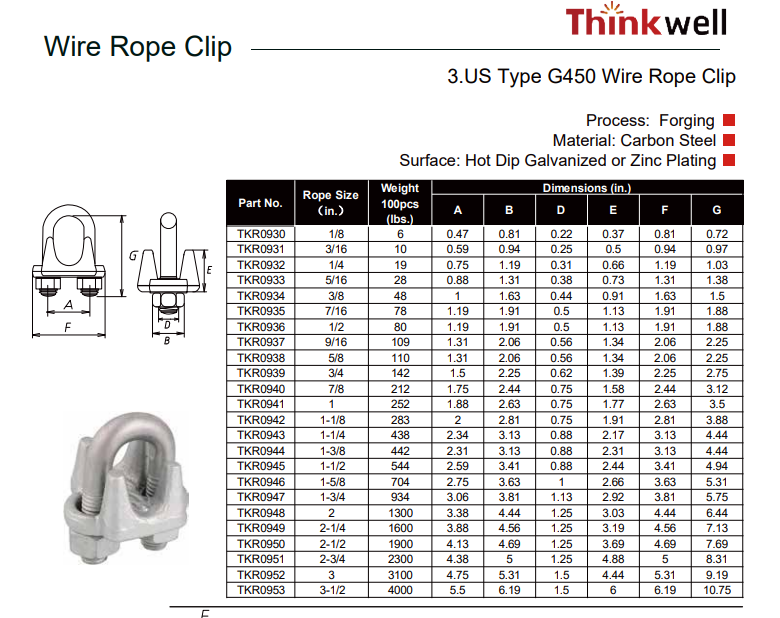

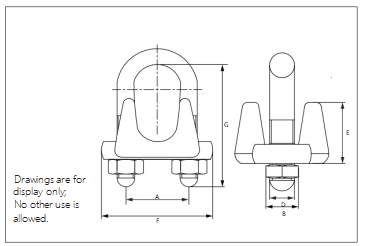

Part No | Spec | Weight (lbs.) | Measure(in.) | |||||
A | B | D | E | F | G | |||
TKDSJ-2020 -01 | 1/8" | 0.06 | 0.47 | 0.81 | 0.22 | 0.37 | 0.81 | 0.72 |
TKDSJ-2020 -02 | 3/16" | 0.1 | 0.59 | 0.94 | 0.25 | 0.5 | 0.94 | 0.97 |
TKDSJ-2020 -03 | 1/4" | 0.19 | 0.75 | 1.19 | 0.31 | 0.66 | 1.19 | 1.03 |
TKDSJ-2020 -04 | 5/16" | 0.28 | 0.88 | 1.31 | 0.38 | 0.73 | 1.31 | 1.38 |
TKDSJ-2020 -05 | 3/8" | 0.48 | 1 | 1.63 | 0.44 | 0.91 | 1.63 | 1.5 |
TKDSJ-2020 -06 | 7/16" | 0.78 | 1.19 | 1.91 | 0.5 | 1.13 | 1.91 | 1.88 |
TKDSJ-2020 -07 | 1/2" | 0.8 | 1.19 | 1.91 | 0.5 | 1.13 | 1.91 | 1.88 |
TKDSJ-2020 -08 | 9/16" | 1.09 | 1.31 | 2.06 | 0.56 | 1.34 | 2.06 | 2.25 |
TKDSJ-2020 -09 | 5/8" | 1.1 | 1.31 | 2.06 | 0.56 | 1.34 | 2.06 | 2.25 |
TKDSJ-2020 -10 | 3/4" | 1.42 | 1.5 | 2.25 | 0.62 | 1.39 | 2.25 | 2.75 |
TKDSJ-2020 -11 | 7/8" | 2.12 | 1.75 | 2.44 | 0.75 | 1.58 | 2.44 | 3.12 |
TKDSJ-2020 -12 | 1" | 2.52 | 1.88 | 2.63 | 0.75 | 1.77 | 2.63 | 3.5 |
TKDSJ-2020 -13 | 1-1/8" | 2.83 | 2 | 2.81 | 0.75 | 1.91 | 2.81 | 3.88 |
TKDSJ-2020 -14 | 1-1/4" | 4.38 | 2.34 | 3.13 | 0.88 | 2.17 | 3.13 | 4.44 |
TKDSJ-2020 -15 | 1-3/8" | 4.42 | 2.31 | 3.13 | 0.88 | 2.31 | 3.13 | 4.44 |
TKDSJ-2020 -16 | 1-1/2" | 5.44 | 2.59 | 3.41 | 0.88 | 2.44 | 3.41 | 4.94 |
TKDSJ-2020 -17 | 1-5/8" | 7.04 | 2.75 | 3.63 | 1 | 2.66 | 3.63 | 5.31 |
TKDSJ-2020 -18 | 1-3/4" | 9.34 | 3.06 | 3.81 | 1.13 | 2.92 | 3.81 | 5.75 |
TKDSJ-2020 -19 | 2" | 13 | 3.38 | 4.44 | 1.25 | 3.03 | 4.44 | 6.44 |
TKDSJ-2020 -20 | 2-1/4" | 16 | 3.88 | 4.56 | 1.25 | 3.19 | 4.56 | 7.13 |
TKDSJ-2020 -21 | 2-1/2" | 19 | 4.13 | 4.69 | 1.25 | 3.69 | 4.69 | 7.69 |
TKDSJ-2020 -22 | 2-3/4" | 23 | 4.38 | 5 | 1.25 | 4.88 | 5 | 8.31 |
TKDSJ-2020 -23 | 3" | 31 | 4.75 | 5.31 | 1.5 | 4.44 | 5.31 | 9.19 |
TKDSJ-2020 -24 | 3-1/2" | 40 | 5.5 | 6.19 | 1.5 | 6 | 6.19 | 10.75 |
The G450 US type wire rope clip is used to clamp the dead end of a wire rope to form a secure loop or termination. It is widely used in industrial rigging, marine mooring, construction, mining, transportation and heavy equipment connections.
The G450 is a heavy-duty US type clip with a drop-forged body and bolted safety end, designed for higher holding force and more demanding applications. Ordinary U-bolt clips are lighter and more suitable for low-load or temporary use.
Yes, the G450 US type wire rope clip is manufactured by drop forging, which makes the body stronger, denser and more resistant to impact and deformation than cast products.
The number of clips depends on the wire rope diameter, load and application standard. In general, more than one clip is recommended for a reliable termination. Always follow the relevant standard or engineering installation requirements.
We provide electro-galvanized for general anti-rust protection and hot-dip galvanized for stronger corrosion resistance in outdoor, marine and harsh industrial environments.
Yes. Besides carbon steel, we can provide stainless steel 304/316 options according to customer requirements for corrosion-resistant applications.
Yes, we support customization of sizes, materials, surface treatments, markings and packaging to meet different application and export requirements.
Regular G450 sizes are available in stock for fast delivery. Customized products can usually be finished within 3-7 working days, and we support long-term bulk supply.
