Italy Wire Rope Clip
Thinkwell
| Quantity: | |
|---|---|

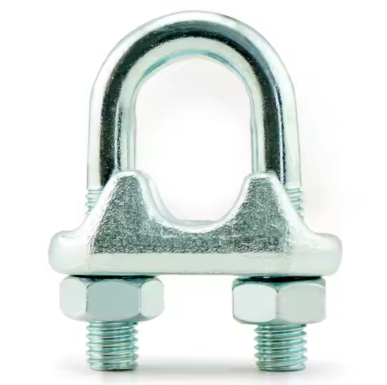

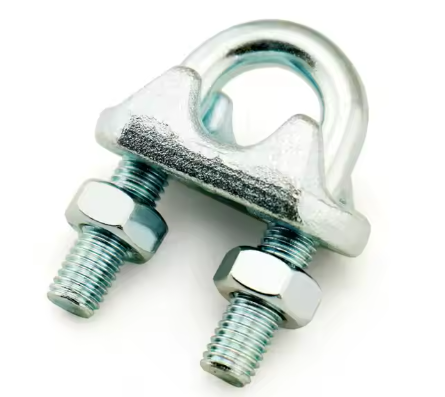

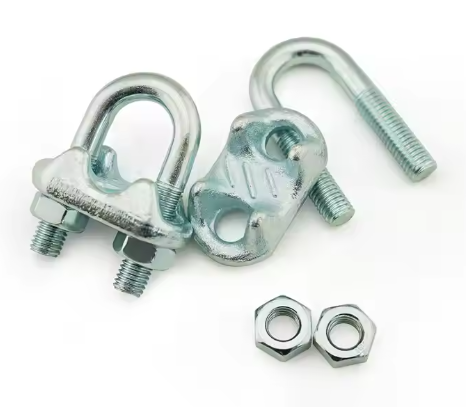

Italy Type Wire Rope Clip is a high-strength forged wire rope fixing fastener, also known as Italian wire rope clamp and double-bolt rope clip. Adopting European standard design, it features double-bolt symmetrical pressing structure, which provides more uniform clamping force and higher anti-loosening performance than traditional U-type rope clips.
Widely popular in European markets, this forged rope clip is used for wire rope fastening, tail fixing and rope connection. It is suitable for marine rigging, construction engineering, mechanical lifting, guardline tensioning and outdoor fixed rigging scenarios, with stable clamping effect and high safety factor.
18 Years Professional Production Experience: We focus on the R&D and mass production of Italian standard wire rope clips, with mature forging technology, stable product quality and rich export engineering matching experience.
Strictly manufactured in accordance with European industry standards, fully compliant with European engineering and export requirements, widely recognized in global rigging markets.
Symmetrical double-bolt pressing structure ensures even stress on wire ropes, effectively avoiding rope deformation, slipping and loosening during tensioning and lifting.
Made of premium Q235 carbon steel or stainless steel via integral drop forging, with dense texture, strong compression resistance and long service life.
Compared with ordinary U-type clips, Italian type clips have stronger locking force, not easy to loose under vibration and long-term tension, high safety stability.
Support electro-galvanized, hot-dip galvanized and powder coating surface treatments, adapting to indoor, outdoor, humid and marine salt-spray environments.
Covers full specifications from 4mm to 45mm, matching various common wire rope diameters, suitable for multiple industrial rigging scenarios.
Simple assembly and disassembly, adjustable clamping tightness, reusable after disassembly, cost-effective for engineering use.
Ideal for wire rope fixing, rigging connection, equipment tensioning, ship outfitting, building protection, stage and machinery auxiliary rigging.
Specialized in the production of Italian type wire rope clips and various rigging fasteners for 18 years, with mature production technology and stable product quality.
Adopt integral drop forging process, with sampling tension test and compression test for each batch, 100% qualified before delivery.
Support custom size, surface treatment, logo printing and personalized packaging to meet OEM/ODM export demands.
Full conventional sizes in stock, support bulk wholesale and urgent order delivery, stable long-term supply capacity.
Direct sales without middlemen, high cost performance, with preferential policies for large-volume orders.
Provide accurate model selection guidance and engineering application suggestions, perfect after-sales service guarantee.
Model Size | Applicable Rope Diameter (mm) | Material | Surface Treatment | Processing Technology | Application |
IT-4mm | 4 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Fine wire rope fixing |
IT-6mm | 6 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Small rigging tensioning |
IT-8mm | 8 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | General engineering fixing |
IT-10mm | 10 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Construction rigging |
IT-12mm | 12 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Mechanical tensioning |
IT-16mm | 16 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Medium load rigging |
IT-20mm | 20 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Heavy equipment fixing |
IT-24mm | 24 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Marine rigging |
IT-30mm | 30 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Large tension engineering |
IT-45mm | 45 | Carbon Steel | Electro/Hot-dip Galvanized | Drop Forged | Super heavy-duty rigging |
Italian type wire rope clip is a professional rigging fastener, mainly used for fixing, locking and connecting steel wire ropes. It is widely used in construction engineering, marine outfitting, mechanical lifting, guardrail tensioning and outdoor equipment fixing to ensure stable rope clamping.
Different from single-pressure U-type clips, Italian rope clip adopts double-bolt symmetrical pressing design. It provides more uniform clamping force, no rope crushing, stronger anti-slip and anti-loosening ability, higher safety and durability for long-term tension use.
Yes. All products are manufactured strictly in accordance with European industry standards, with standard size and stable clamping performance, fully meeting European market access and engineering construction requirements.
Absolutely. Our Italian wire rope clips adopt integral drop forging process, with higher density, stronger compression resistance and no crack risk. Cast clips are easy to break under heavy load, while forged ones are safer for long-term repeated use.
We provide electro-galvanized (daily anti-rust, cost-effective), hot-dip galvanized (high anti-corrosion for outdoor/marine use) and powder coating treatments, as well as SUS304/316 stainless steel options for harsh environments.
Yes. We support customized special sizes, exclusive surface treatment, laser logo printing and personalized packaging, providing one-stop OEM/ODM export service.
Our high-strength forged Italian rope clips are reusable after disassembly and reinstallation. It is recommended to check bolt tightness and body deformation before reuse to ensure safety.
All conventional sizes are in stock for fast delivery. Customized products can be completed within 3-7 working days. With 18 years of production experience, we support large-volume long-term stable supply.
