US Type Wire Rope Clip
Thinkwell
| Quantity: | |
|---|---|

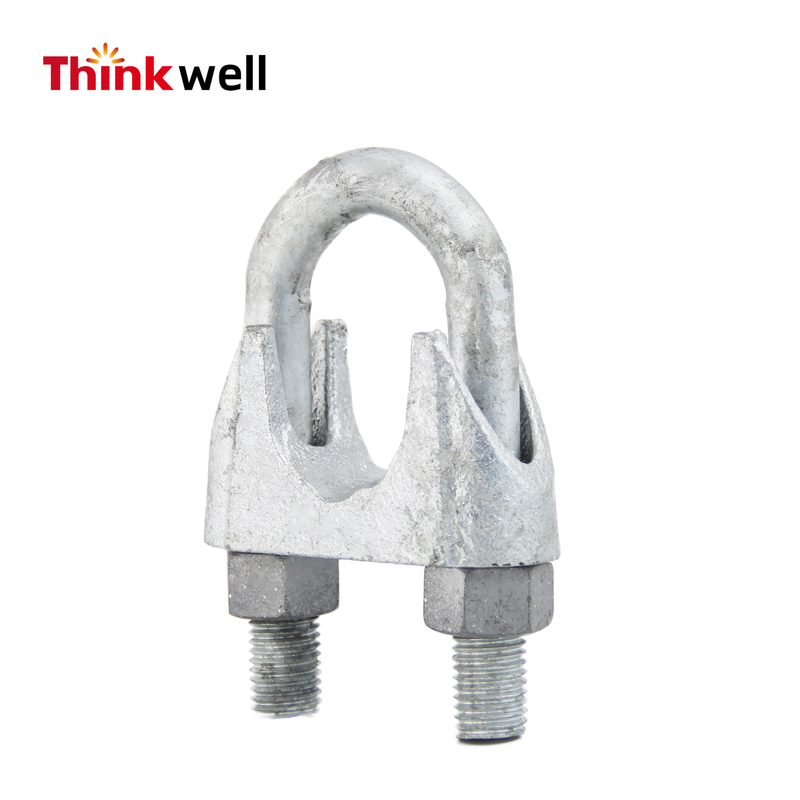

US Type Malleable Wire Rope Clip is a cost-effective assembled rigging fastener designed per American standard, also known as malleable iron rope clamp and economy U-type wire rope clip. Different from heavy forged G450 clips, this product adopts premium malleable iron casting process with integrated assembled structure, featuring good toughness, anti-cracking performance and stable clamping effect.
Specially designed for conventional wire rope fixing, temporary connection and cable tail locking, it is widely used in light and medium-duty rigging scenarios such as building protection, daily rigging fixing, machinery auxiliary cable and general industrial tensioning, favored for its high cost performance and easy installation.
18 Years Professional Production Experience: We specialize in mass production of standard malleable iron rigging clips, with mature casting and assembling technology, stable product consistency and long-term export service experience.
Adopts high-toughness malleable iron raw material, effectively avoiding brittle cracking of ordinary cast parts, with better impact resistance and structural stability in daily use.
Finished assembled design with matched U-bolt, saddle and nuts, no extra assembly required, greatly improving on-site installation efficiency.
Built-in non-slip groove on the saddle inner surface fits the wire rope tightly, disperses clamping force evenly and prevents rope slipping or damage.
Strictly follows US inch specification standards, complete size system, perfectly matching American standard steel wire ropes for convenient engineering matching.
Standard electro-galvanized finish with smooth surface and uniform zinc layer, effectively resisting daily rust and oxidation for indoor and outdoor conventional environments.
Balances toughness and cost, ideal for medium and light-duty rigging projects, more cost-effective than heavy forged clips for daily conventional use.
Standard thread structure ensures smooth tightening and loosening, supporting repeated disassembly and reuse for temporary rigging layout adjustment.
Suitable for guardrail cable fixing, light equipment binding, temporary rigging connection, construction auxiliary cable locking and general industrial rope tensioning.
Focus on malleable iron rigging accessories production, with mature casting, finishing and assembly production lines, stable batch quality.
Each batch undergoes appearance inspection, thread calibration and clamping performance test to ensure no cracks, smooth thread and qualified assembly.
Support customized surface treatment, laser logo marking and personalized packaging to meet diverse export market demands.
Full range of conventional inch sizes in stock, supporting bulk wholesale, mixed batch delivery and urgent order supply.
Independent production and assembly, no redundant processing cost, providing high-quality economical rigging accessories for global customers.
Provide size selection guidance and installation standard suggestions to help customers optimize rigging layout.

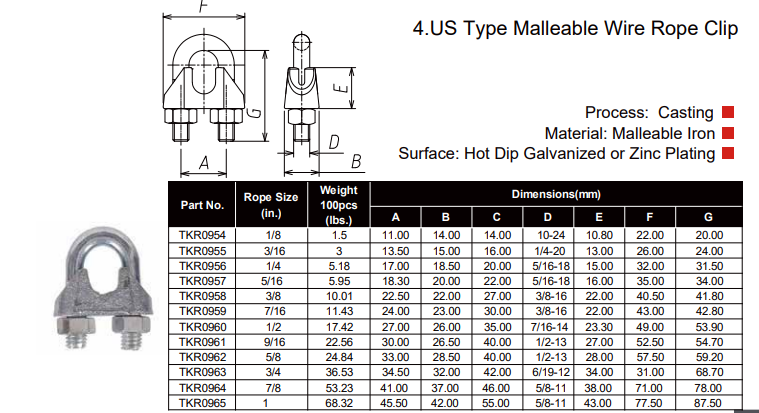

Model Size | Applicable Rope Diameter | Material | Surface Treatment | Process | Application Scenario |
US-Malleable 1/8" | 1/8 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Fine cable fixing |
US-Malleable 3/16" | 3/16 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Light rigging connection |
US-Malleable 1/4" | 1/4 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | General daily rigging |
US-Malleable 5/16" | 5/16 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Construction auxiliary cable |
US-Malleable 3/8" | 3/8 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Medium load fixing |
US-Malleable 1/2" | 1/2 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Industrial conventional rigging |
US-Malleable 5/8" | 5/8 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Mechanical cable tensioning |
US-Malleable 3/4" | 3/4 inch | Malleable Iron | Electro-galvanized | Casting & Assembly | Large cable fixing |
It is an economical assembled rigging fastener, mainly used for fixing, locking and temporary connection of steel wire ropes. It is widely applied in building guardrails, mechanical equipment, daily rigging layout and general industrial cable tensioning.
Malleable iron clip features good toughness, complete assembly and high cost performance, suitable for light and medium-duty conventional scenarios. G450 forged clip has higher tensile strength and safety factor, specially used for heavy-load lifting and long-term permanent engineering.
No. Adopted high-toughness malleable iron material, different from ordinary brittle cast iron, it has excellent impact resistance and bending resistance, no cracking under standard working load, safe for daily repeated use.
Yes. All products adopt unified US inch size standards, with precise thread and specification calibration, fully matching American standard wire ropes and meeting North American market export requirements.
Yes. The standard thread and integrated assembled structure support repeated disassembly, adjustment and reinstallation. It is recommended to check saddle deformation and thread integrity before reuse.
We provide standard electro-galvanized for daily anti-rust use, and optional hot-dip galvanized treatment for enhanced corrosion resistance, adapting to humid and outdoor working environments.
Yes. We support customized special sizes, surface treatment processes, laser logo printing and exclusive packaging services to meet personalized export demands.
All regular sizes are in sufficient stock for fast delivery. Customized orders can be finished within 3-7 working days. With 18 years of production experience, we support stable long-term bulk supply.
